TPMR 221-46:6640
TPMR 221-46:6640

TPMR 221-46:6640

UGC DOR6751745
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.90 CAD - $9.90 CAD
$9.90 CAD
$9.90 CAD - $9.90 CAD
$9.90 CAD

Vendu en lots de : 10

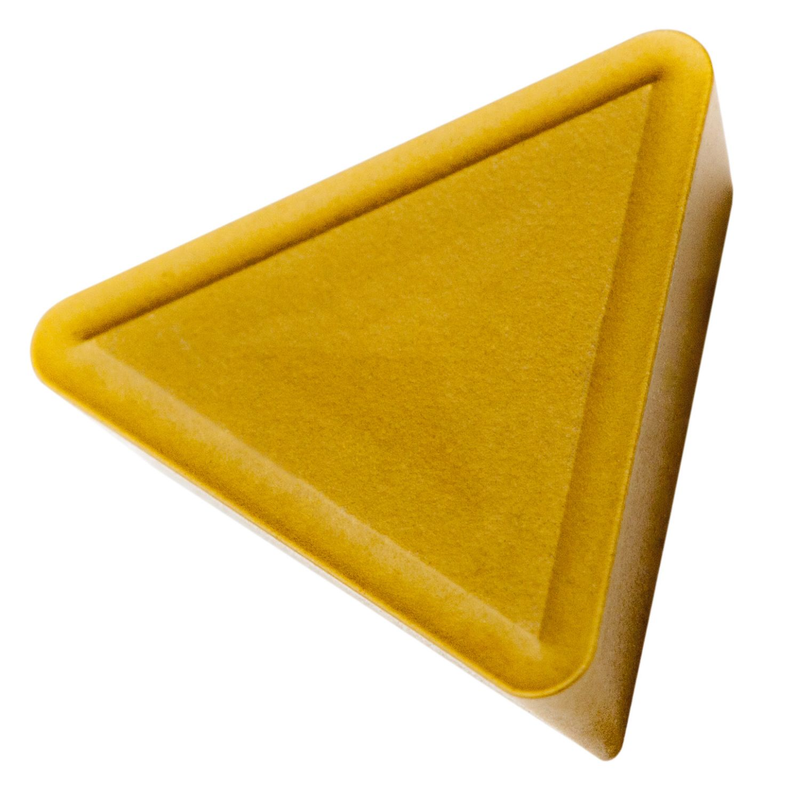

Plaquette de tournage positive simple face, triangulaire avec dépouille de 11°, diamètre du cercle inscrit de 1/4", épaisseur de 1/8", rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux 46, en nuance 6640, un carbure WC-Co revêtu MT-CVD dans les plages ISO P20 - P40 et K25 - K40, pour l'usinage fin à moyen des aciers et des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TPMR 221-46:6640
Product Name (ISO)TPMR 110304E-46:6640
Grade6640
Chipbreaker (CBMD)46
Product Number6751745
Product FamilyTPMR

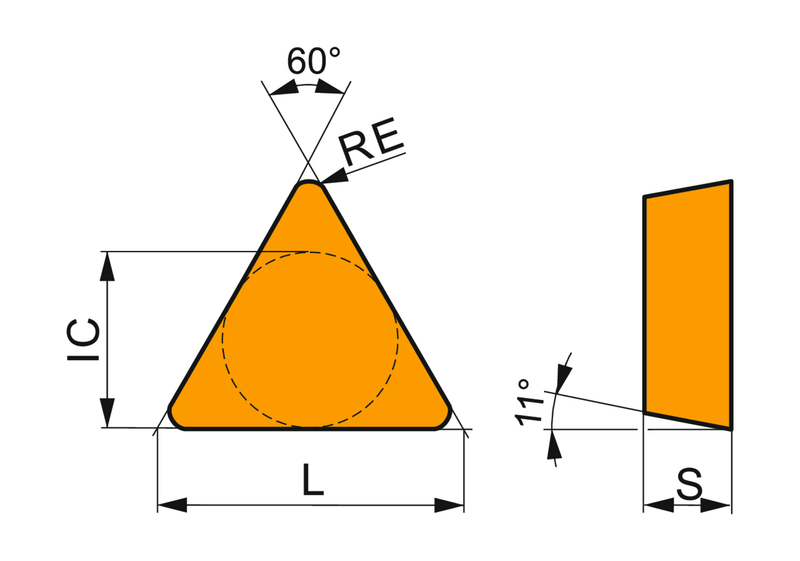

Insert Geometry
Insert DesignTPMR
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6751745
EAN3603602871114
File Type Download
TPMR 221-46:6640 — Line Drawing PDF Download
