TPU 321:H10
TPU 321:H10

TPU 321:H10

UGC DOR6751783
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.64 CAD - $8.64 CAD
$8.64 CAD
$8.64 CAD - $8.64 CAD
$8.64 CAD

Vendu en lots de : 10

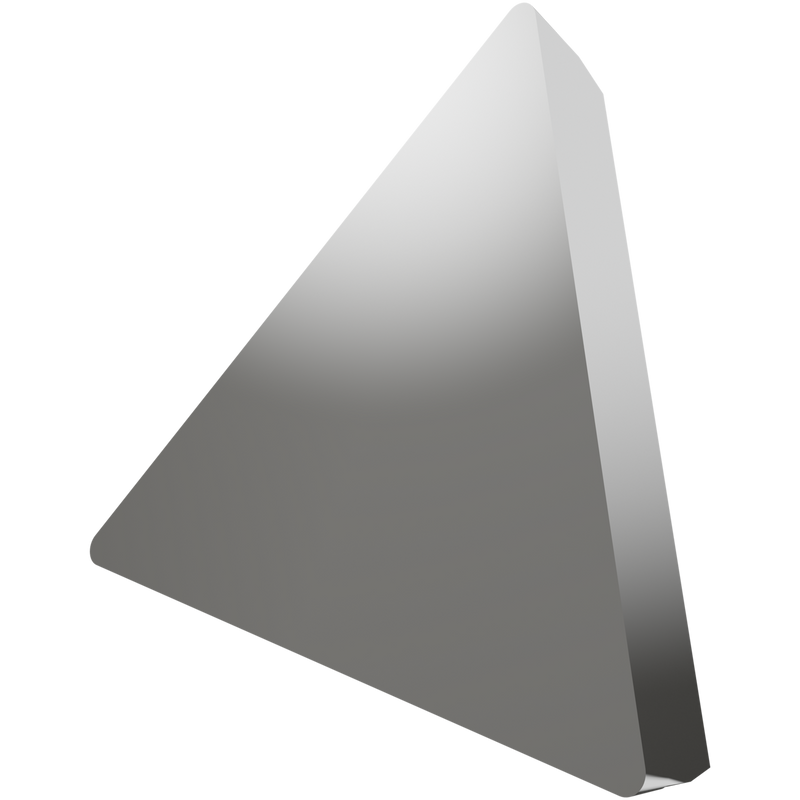

Plaquette de fraisage simple face TPUN 1603 avec une surface de coupe plane, triangulaire pour une profondeur de coupe maximale de 12 mm, avec un rayon de coin de 0,4 mm, une précision d'indexation selon la classe de tolérance ISO-U, en carbure WC-Co non revêtu H10 dans la gamme ISO K15-K30 pour l'usinage de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI)TPU 321:H10
Product Name (ISO)TPUN 160304:H10
GradeH10
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6751783
Product FamilyTPUN

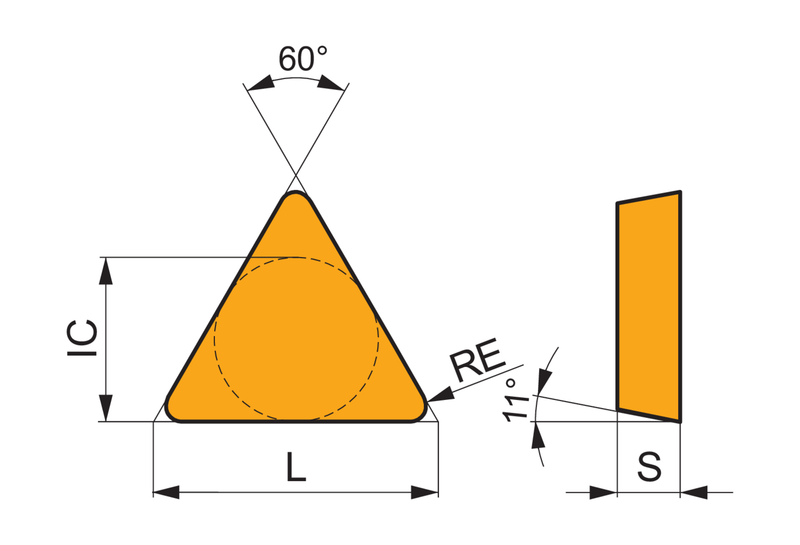

Insert Geometry
Insert DesignTPUN
Insert Shape Code (SC)T - angulaire 60° angle inclus
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number6751783
EAN3603602871497
File Type Download
TPU 321:H10 — Line Drawing PDF Download
