SPU 422:S26
SPU 422:S26

SPU 422:S26

UGC DOR6751791
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.57 CAD - $10.57 CAD
$10.57 CAD
$10.57 CAD - $10.57 CAD
$10.57 CAD

Vendu en lots de : 10

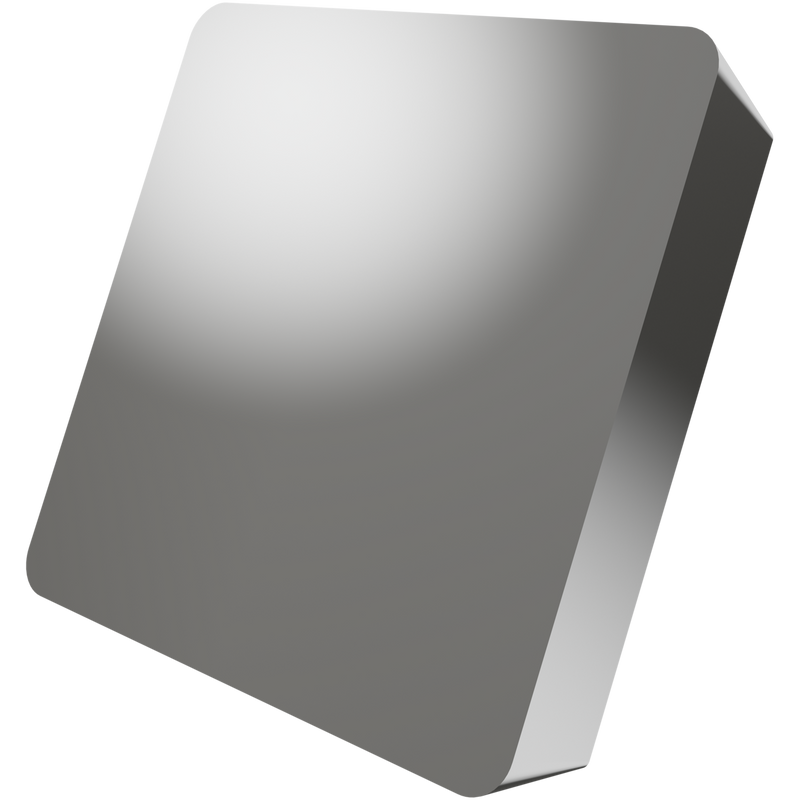

Plaquette de fraisage simple face SPUN 1203 à face de coupe plane, carrée, pour une profondeur de coupe maximale de 9 mm (0,3543"), avec rayon de coin de 0,8 mm (0,0315"), précision de positionnement selon la classe de tolérance ISO U, en carbure WC-(Ti, Ta, Nb)C-Co non revêtu S26

For more information about this product, click here

Identification
Ordering Code (ANSI)SPU 422:S26
Product Name (ISO)SPUN 120308:S26
GradeS26
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6751791
Product FamilyFILÉ

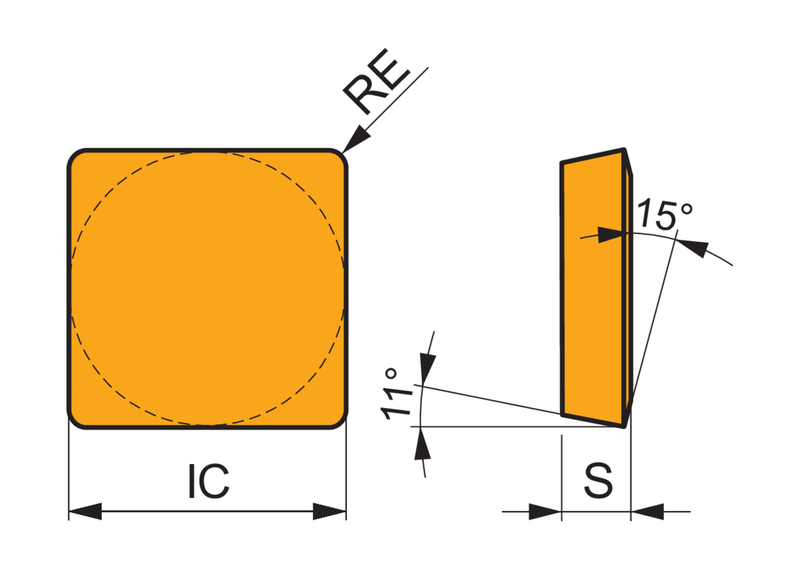

Insert Geometry
Insert DesignFILÉ
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.354"
Depth of Cut Max — mm (APMX)9.0 mm
Tool Information
Reference Numbers
EDP Number6751791
EAN3603602871572
File Type Download
SPU 422:S26 — Line Drawing PDF Download
