SPU 845S:S26
SPU 845S:S26

SPU 845S:S26

UGC DOR6751794
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.79 CAD - $43.79 CAD
$43.79 CAD
$43.79 CAD - $43.79 CAD
$43.79 CAD

Vendu en lots de : 10

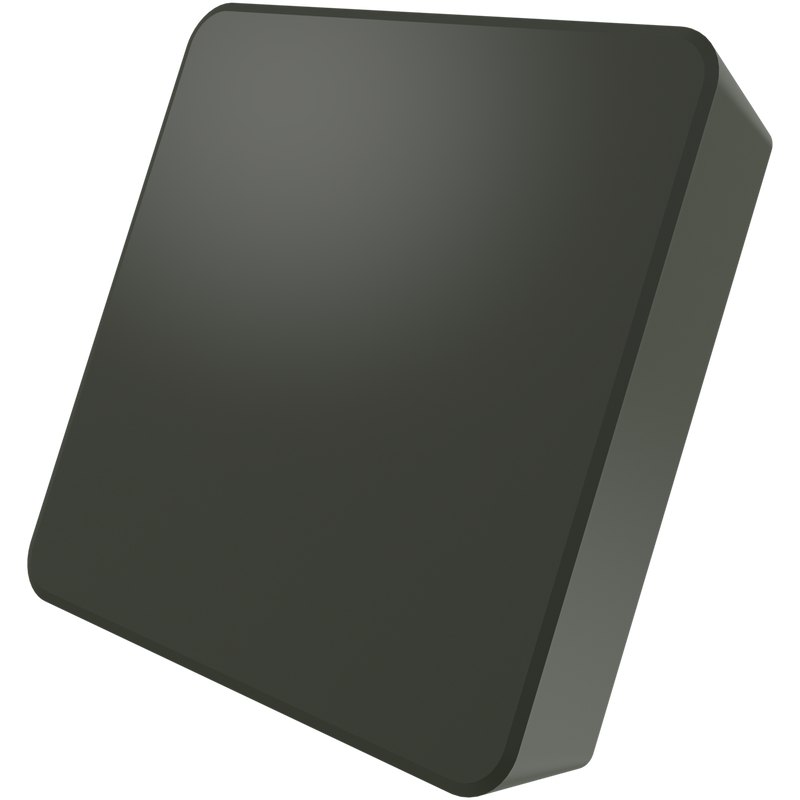

Plaquette de fraisage simple face SPUN 2506 avec une face de coupe plane, carrée pour une profondeur de coupe maximale de 18 mm, avec un rayon de coin de 2 mm, une précision de positionnement selon la classe de tolérance ISO-U avec des arêtes de coupe arrondies et un chanfrein, en carbure WC-(Ti, Ta, Nb)C-Co non revêtu S26

For more information about this product, click here

Identification
Ordering Code (ANSI)SPU 845S:S26
Product Name (ISO)SPUN 250620S:S26
GradeS26
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6751794
Product FamilyFILÉ
Insert Geometry
Insert DesignFILÉ
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.079"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.709"
Depth of Cut Max — mm (APMX)18.0 mm
Tool Information
Reference Numbers
EDP Number6751794
EAN3603602871602
File Type Download

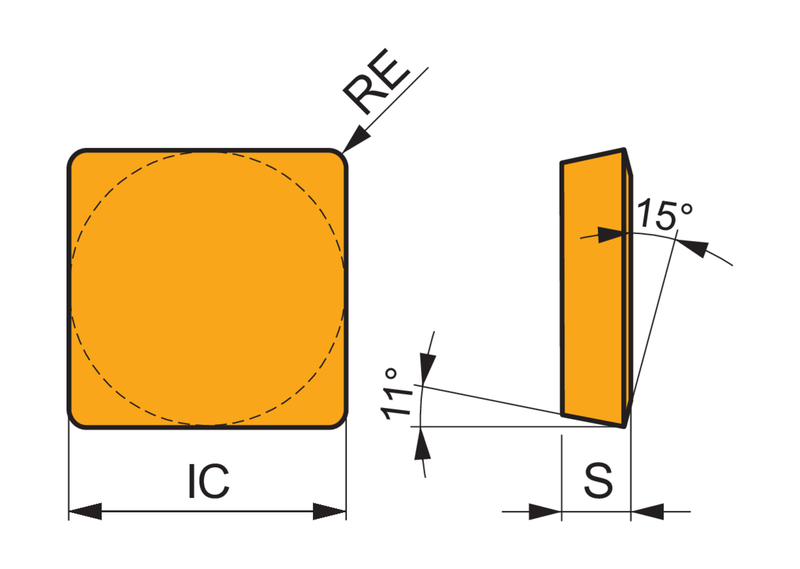

SPU 845S:S26 — Line Drawing PDF Download
