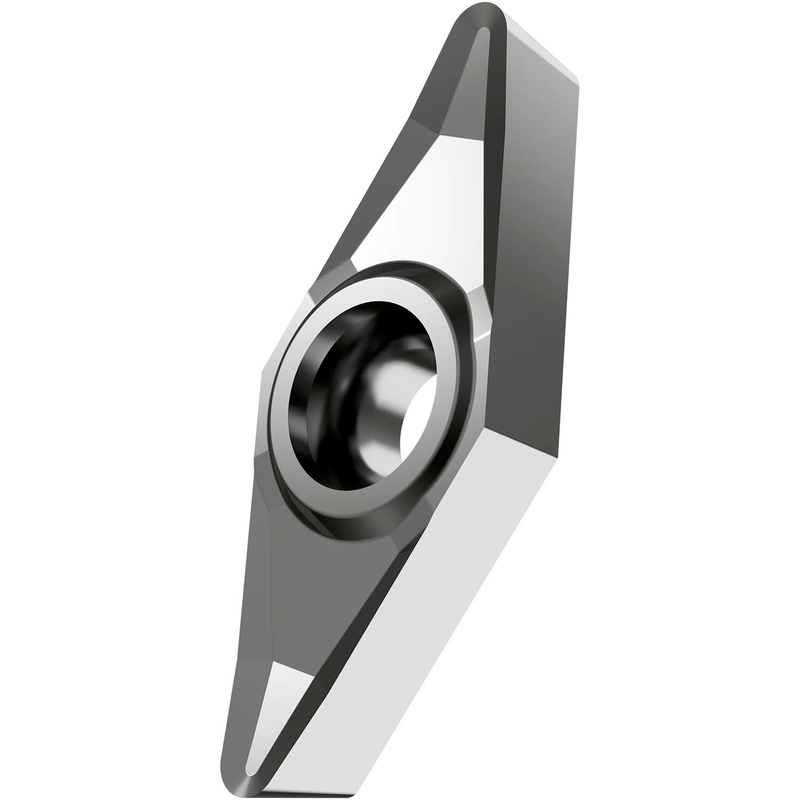

VCGT 221F-AL:HF7
VCGT 221F-AL:HF7

VCGT 221F-AL:HF7

UGC DOR6751806
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.14 CAD - $23.14 CAD
$23.14 CAD
$23.14 CAD - $23.14 CAD
$23.14 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur de 1/8", rayon de pointe de 1/64", précision d'indexage selon la classe de tolérance ISO G, brise-copeaux AL avec arêtes vives, en nuance HF7, un carbure WC-Co à grains fins non revêtu de la gamme ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 221F-AL:HF7
Product Name (ISO)VCGT 110304F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6751806
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - à 35° d'angle d'ouverture
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.11"
Depth of Cut Max — mm (APMX)2.8 mm
Tool Information
Reference Numbers
EDP Number6751806
EAN3603602871725
File Type Download
VCGT 221F-AL:HF7 — Line Drawing PDF Download
