VCMW 331FN:PD1
VCMW 331FN:PD1

VCMW 331FN:PD1

UGC DOR6751824
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.14 CAD - $197.14 CAD
$197.14 CAD
$197.14 CAD - $197.14 CAD
$197.14 CAD

Vendu en lots de : 1

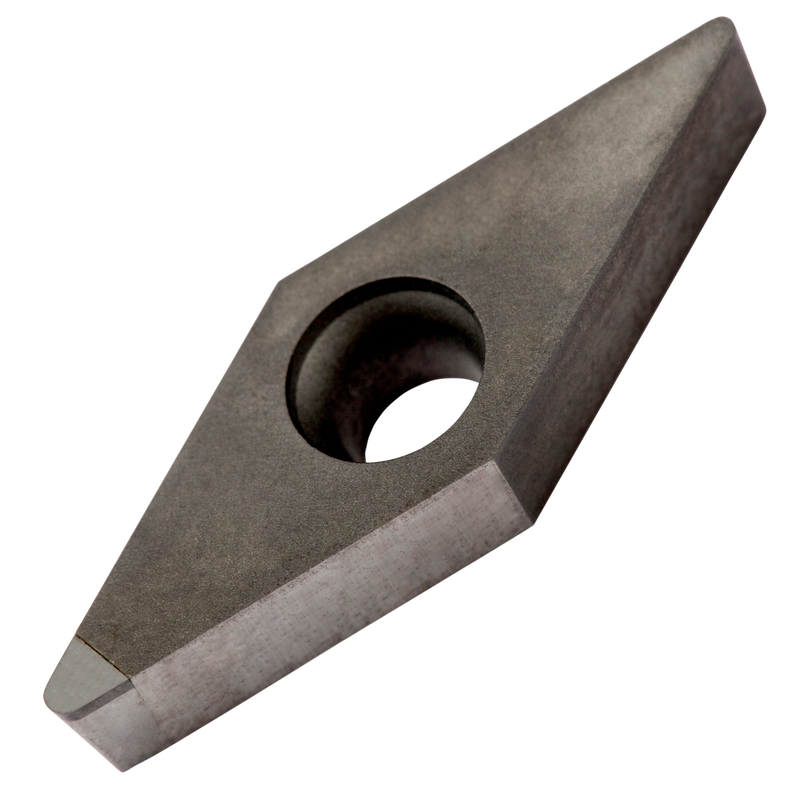

Plaquette tournage à coin PCD, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur 3/16", rayon de bec 1/64", précision de positionnement selon ISO-tolérance classe-M, arêtes vives, en nuance PD1, un diamant polycristallin non revêtu dans la gamme ISO N05-N25, pour l'usinage à grande vitesse des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)VCMW 331FN:PD1
Product Name (ISO)VCMW 160404FN:PD1
GradePD1
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6751824
Product FamilyVCMW PCD
Insert Geometry
Insert DesignMVCN
Insert Shape Code (SC)V - angle interne 35° rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6751824
EAN3603602871909
File Type Download

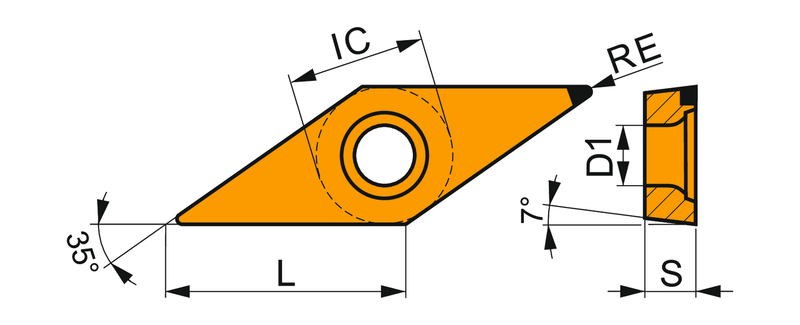

VCMW 331FN:PD1 — Line Drawing PDF Download
