RDHT 1604MO-FA:HF7
RDHT 1604MO-FA:HF7

RDHT 1604MO-FA:HF7

UGC DOR6751853
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.66 CAD - $26.66 CAD
$26.66 CAD
$26.66 CAD - $26.66 CAD
$26.66 CAD

Vendu en lots de : 10

Plaquette de fraisage simple face RDHT 1604 à brise-copeaux, ronde pour une profondeur de coupe maximale de 4 mm (0,1575"), avec un rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-H et une géométrie FA, en carbure WC-Co à grain fin HF7 non revêtu de classe ISO N10-N25 pour l'usinage de métaux non ferreux avec des fraises à copier SRD16

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RDHT 1604MO-FA:HF7
GradeHF7
Chipbreaker (CBMD)FA
Product Number6751853
Product FamilyRDHT 16-FA
Insert Geometry
Insert DesignHRDT
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6751853
EAN3603602872197
File Type Download

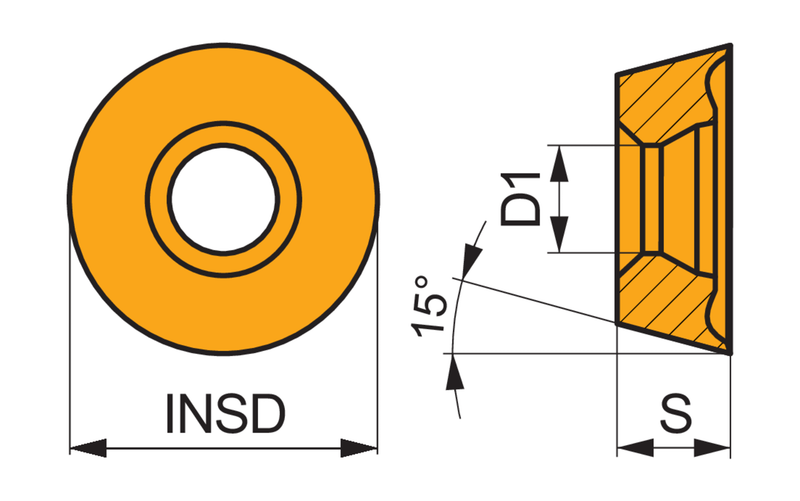

RDHT 1604MO-FA:HF7 — Line Drawing PDF Download
