VCGT 220515F-FA:HF7
VCGT 220515F-FA:HF7

VCGT 220515F-FA:HF7

UGC DOR6751854
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.81 CAD - $36.81 CAD
$36.81 CAD
$36.81 CAD - $36.81 CAD
$36.81 CAD

Vendu en lots de : 10

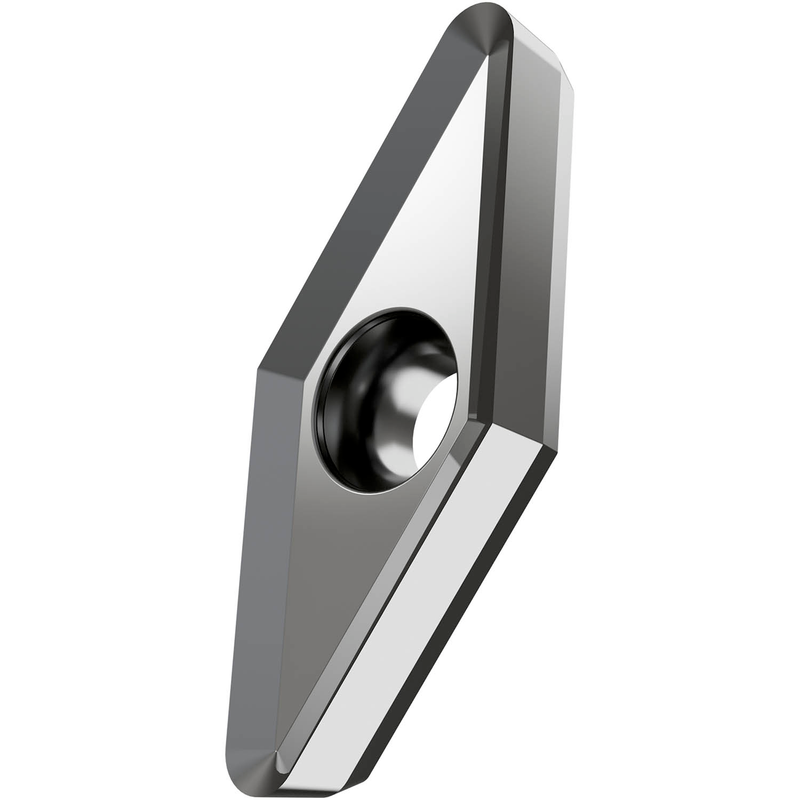

Plaquette de fraisage simple face VCGT 2205 avec brise-copeaux, rhomboïde 35° pour une profondeur de coupe maximale de 20 mm, avec un rayon de pointe de 1,5 mm, une précision de positionnement selon la classe de tolérance ISO-G et une géométrie FA à arêtes vives, carbure WC-Co à grain fin HF7 non revêtu dans la gamme de nuances ISO N10-N25 pour l'usinage des métaux non ferreux avec les fraises en bout SVC22C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)VCGT 220515F-FA:HF7
GradeHF7
Chipbreaker (CBMD)FA
Product Number6751854
Product FamilyVCGT 22-FA

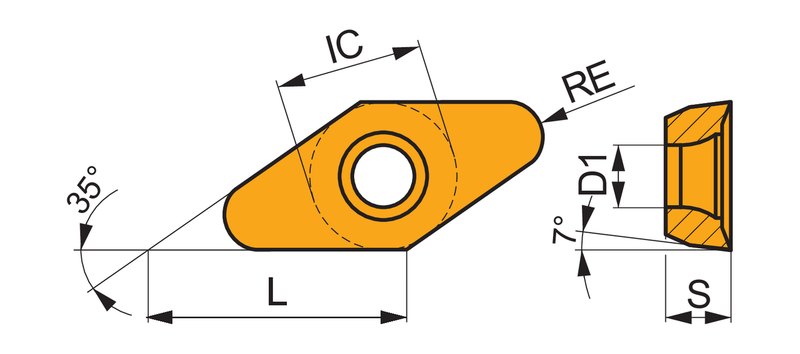

Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle rentrant 35°
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.217"
Insert Thickness — mm (S)5.5 mm
Corner Radius — in (RE)0.059"
Corner Radius — mm (RE)1.5 mm
Depth of Cut Max — in (APMX)0.787"
Depth of Cut Max — mm (APMX)20.0 mm
Tool Information
Reference Numbers
EDP Number6751854
EAN3603602872203
File Type Download
VCGT 220515F-FA:HF7 — Line Drawing PDF Download
