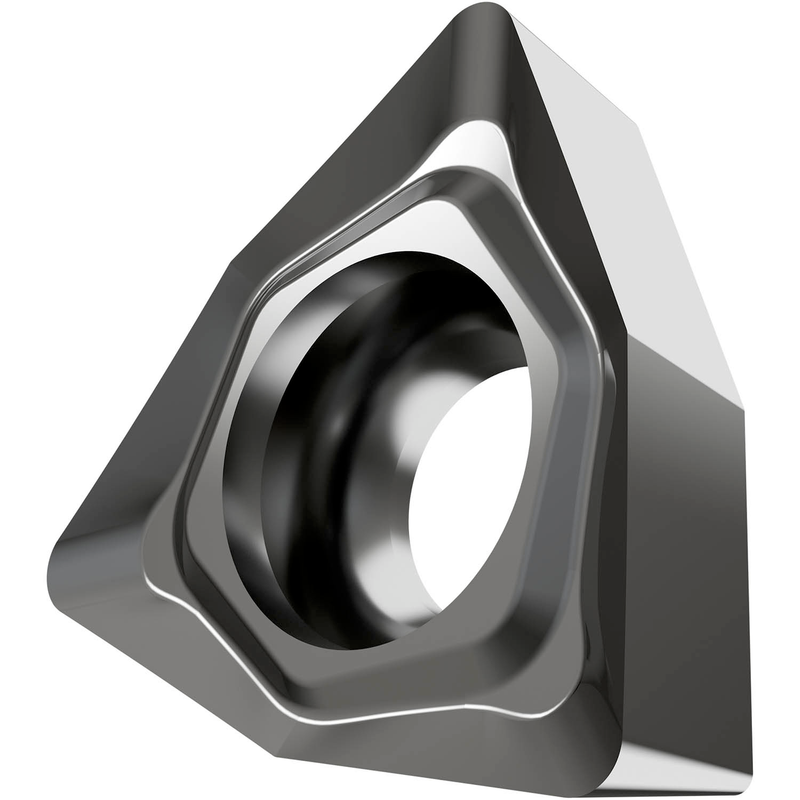

WCGT 32.50.5F-AL:HF7
WCGT 32.50.5F-AL:HF7

WCGT 32.50.5F-AL:HF7

UGC DOR6751857
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.07 CAD - $19.07 CAD
$19.07 CAD
$19.07 CAD - $19.07 CAD
$19.07 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, trigonale 80° avec dépouille de 7°, diamètre du cercle inscrit 3/8", épaisseur 5/32", rayon de bec 1/128", précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux AL avec arêtes vives, nuance HF7, un carbure WC-Co à grains fins non revêtu de la gamme ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)WCGT 32.50.5F-AL:HF7
Product Name (ISO)WCGT 06T302F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6751857
Product FamilyWCGT
Insert Geometry
Insert DesignCMGT
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6751857
EAN3603602872234
File Type Download
WCGT 32.50.5F-AL:HF7 — Line Drawing PDF Download
