TCGT 1.81.50.5F-AL:HF7
TCGT 1.81.50.5F-AL:HF7

TCGT 1.81.50.5F-AL:HF7

UGC DOR6751860
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.43 CAD - $15.43 CAD
$15.43 CAD
$15.43 CAD - $15.43 CAD
$15.43 CAD

Vendu en lots de : 10

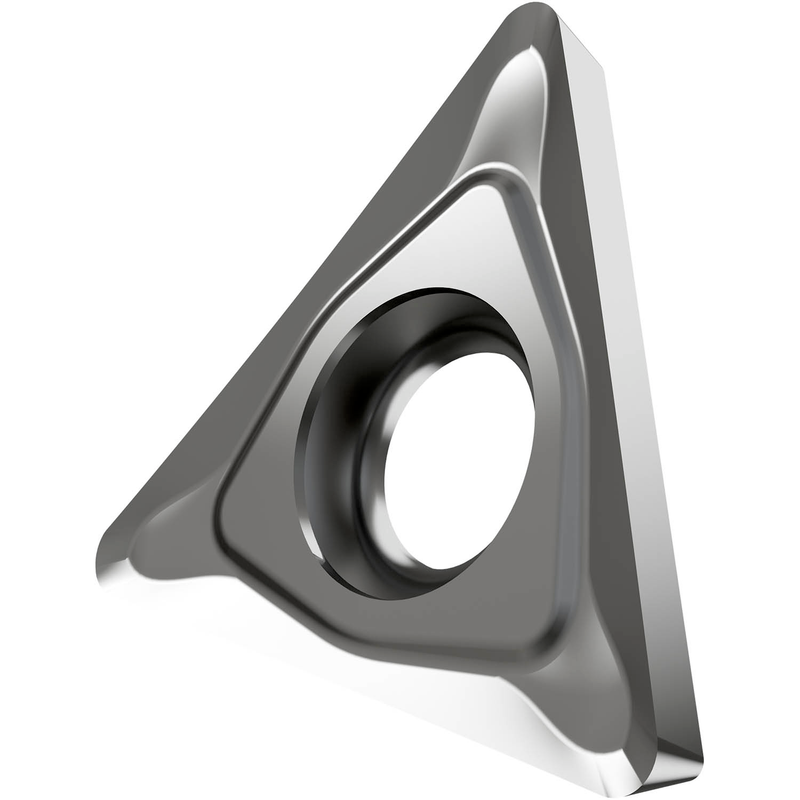

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 7/32, 3/32" d'épaisseur, rayon de bec de 1/128", précision d'indexage selon la classe de tolérance ISO G, brise-copeaux AL à arêtes vives, en nuance HF7, un carbure WC-Co à grains fins non revêtu dans la gamme ISO N10-N25, pour l'usinage léger à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)TCGT 1.81.50.5F-AL:HF7
Product Name (ISO)TCGT 090202F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6751860
Product FamilyTCGT

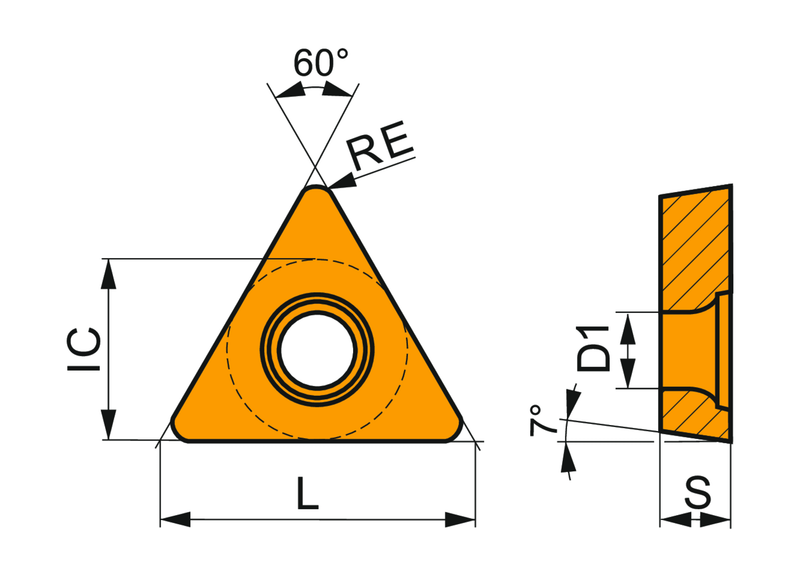

Insert Geometry
Insert DesignTCGT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6751860
EAN3603602872265
File Type Download
TCGT 1.81.50.5F-AL:HF7 — Line Drawing PDF Download
