VCMW 332FN:PD1
VCMW 332FN:PD1

VCMW 332FN:PD1

UGC DOR6751865
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.14 CAD - $197.14 CAD
$197.14 CAD
$197.14 CAD - $197.14 CAD
$197.14 CAD

Vendu en lots de : 1

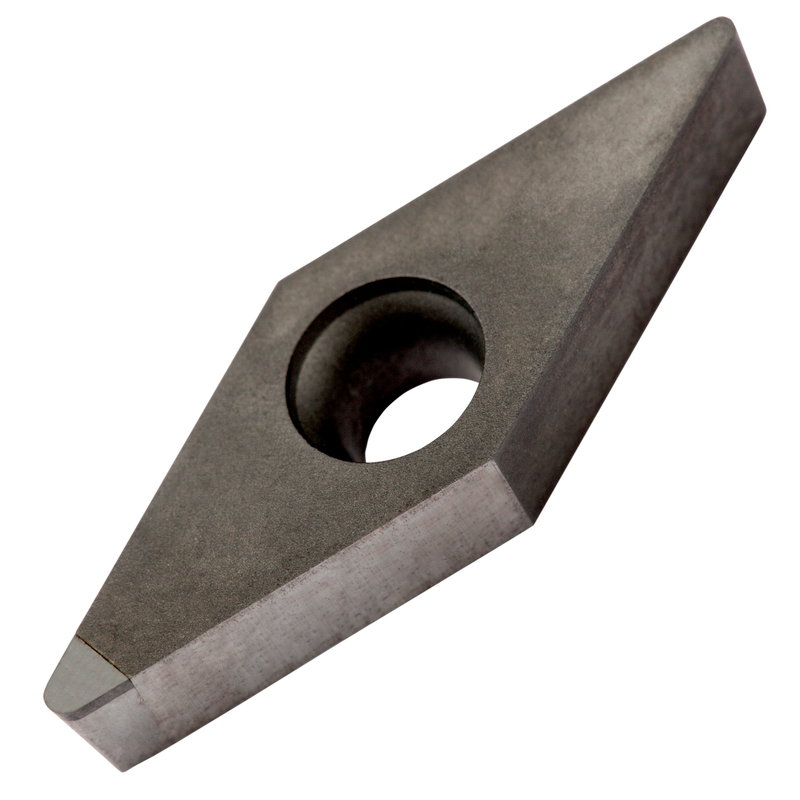

Plaquette de tournage avec pointe en PCD, rhomboïde à 35° avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 1/32", précision d'indexage selon la classe de tolérance ISO-M, arêtes vives, en qualité PD1, un diamant polycristallin non revêtu de la gamme ISO N05-N25, pour l'usinage à grande vitesse des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)VCMW 332FN:PD1
Product Name (ISO)VCMW 160408FN:PD1
GradePD1
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6751865
Product FamilyVCMW PCD

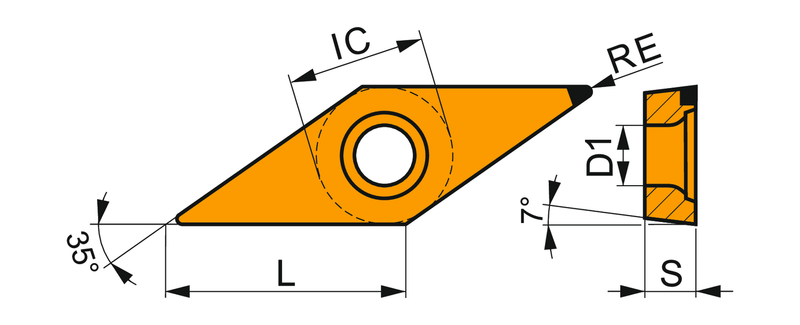

Insert Geometry
Insert DesignVCMW
Insert Shape Code (SC)V - angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6751865
EAN3603602872319
File Type Download
VCMW 332FN:PD1 — Line Drawing PDF Download
