DCMW 32.51FN:PD1
DCMW 32.51FN:PD1

DCMW 32.51FN:PD1

UGC DOR6751869
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$169.29 CAD - $169.29 CAD
$169.29 CAD
$169.29 CAD - $169.29 CAD
$169.29 CAD

Vendu en lots de : 1

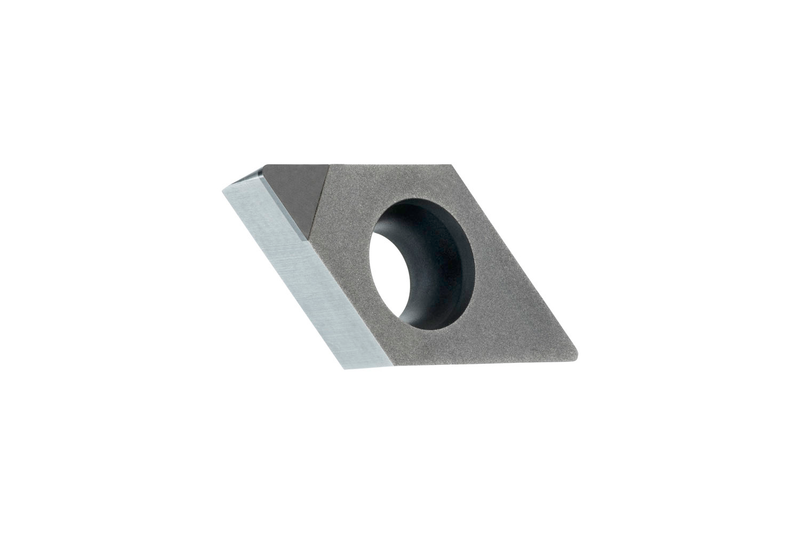

Insert de tournage avec coin en PCD, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur 5/32", rayon de pointe 1/64", précision de positionnement selon la classe de tolérance ISO-M, arêtes vives, en nuance PD1, un diamant polycristallin non revêtu dans la plage ISO N05-N25, pour l'usinage à grande vitesse des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)DCMW 32.51FN:PD1
Product Name (ISO)DCMW 11T304FN:PD1
GradePD1
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6751869
Product FamilyDCMW PCD

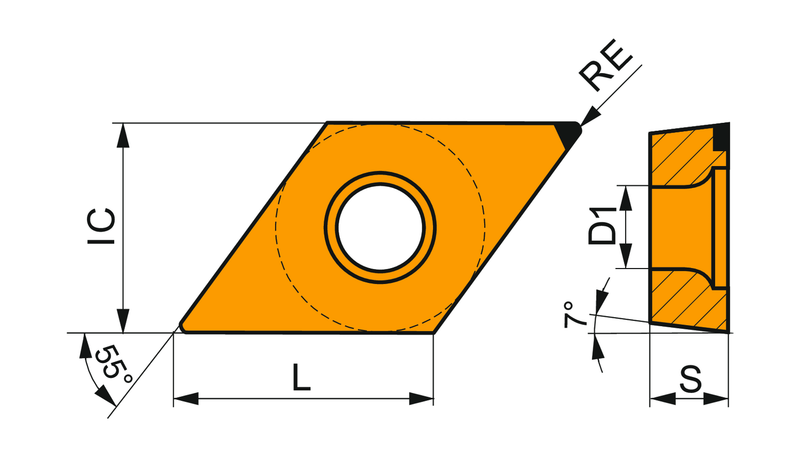

Insert Geometry
Insert DesignJCMD
Insert Shape Code (SC)D - angle inclus de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number6751869
EAN3603602872357
File Type Download
DCMW 32.51FN:PD1 — Line Drawing PDF Download
