USI 632:6640
USI 632:6640

USI 632:6640

UGC DOR6752052
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.40 CAD - $26.40 CAD
$26.40 CAD
$26.40 CAD - $26.40 CAD
$26.40 CAD

Vendu en lots de : 10

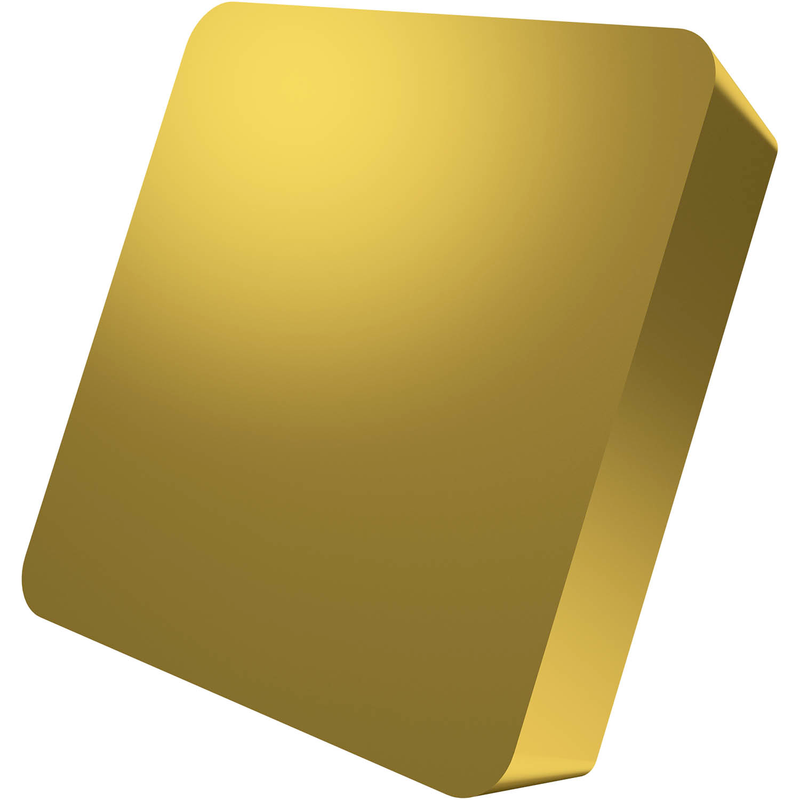

Plaquette de tournage positive simple face, carrée avec un angle de dépouille de 11°, diamètre du cercle inscrit de 3/4", épaisseur de 3/16", rayon de pointe de 1/32" et précision de positionnement selon la classe de tolérance ISO U, en nuance 6640, un carbure WC-Co revêtu MT-CVD dans la gamme ISO P20 - P40, pour l'usinage fin à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SPU 632:6640
Product Name (ISO)SPUN 190408:6640
Grade6640
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6752052
Product FamilyFILÉ
Insert Geometry
Insert DesignFILÉ
Insert Shape Code (SC)C - carré

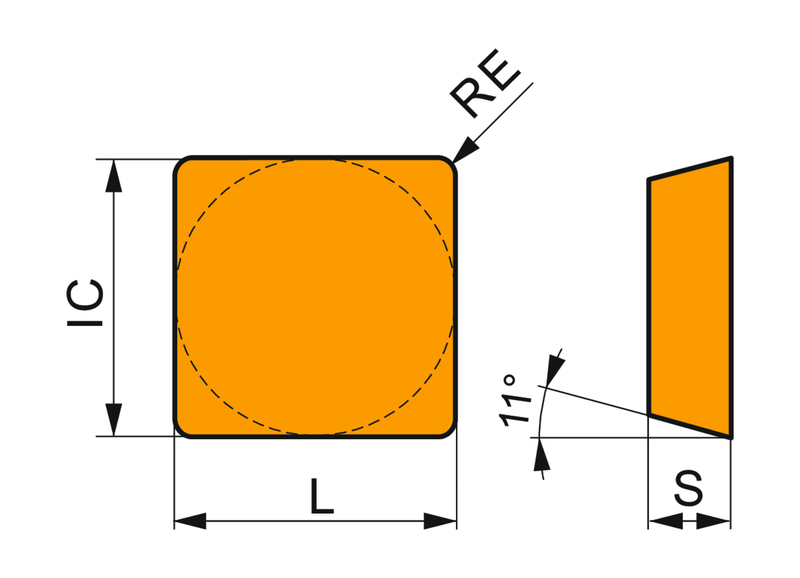

Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.35"
Depth of Cut Max — mm (APMX)8.9 mm
Tool Information
Reference Numbers
EDP Number6752052
EAN3603602874184
File Type Download
USI 632:6640 — Line Drawing PDF Download
