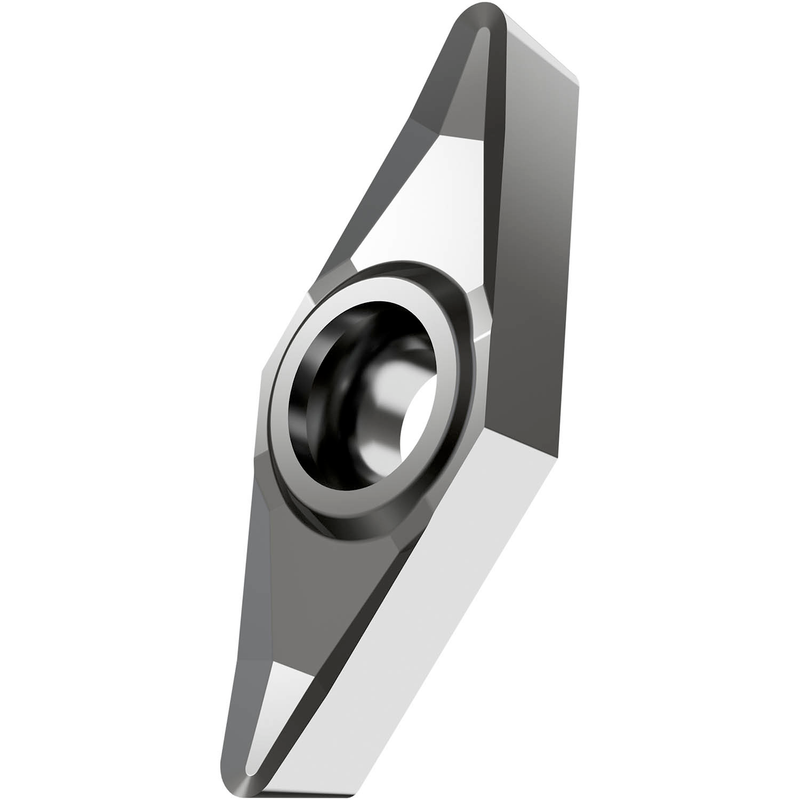

VCGT 330.5F-AL:HF7
VCGT 330.5F-AL:HF7

VCGT 330.5F-AL:HF7

UGC DOR6752053
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.19 CAD - $26.19 CAD
$26.19 CAD
$26.19 CAD - $26.19 CAD
$26.19 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde à 35° avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 3/16", rayon de bec de 1/128", précision d'indexage selon la classe de tolérance ISO G, brise-copeaux AL avec arêtes vives, en nuance HF7, un carbure WC-Co non revêtu à grains fins dans la plage ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 330.5F-AL:HF7
Product Name (ISO)VCGT 160402F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6752053
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle inclus rhombique de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6752053
EAN3603602874191
File Type Download
VCGT 330.5F-AL:HF7 — Line Drawing PDF Download
