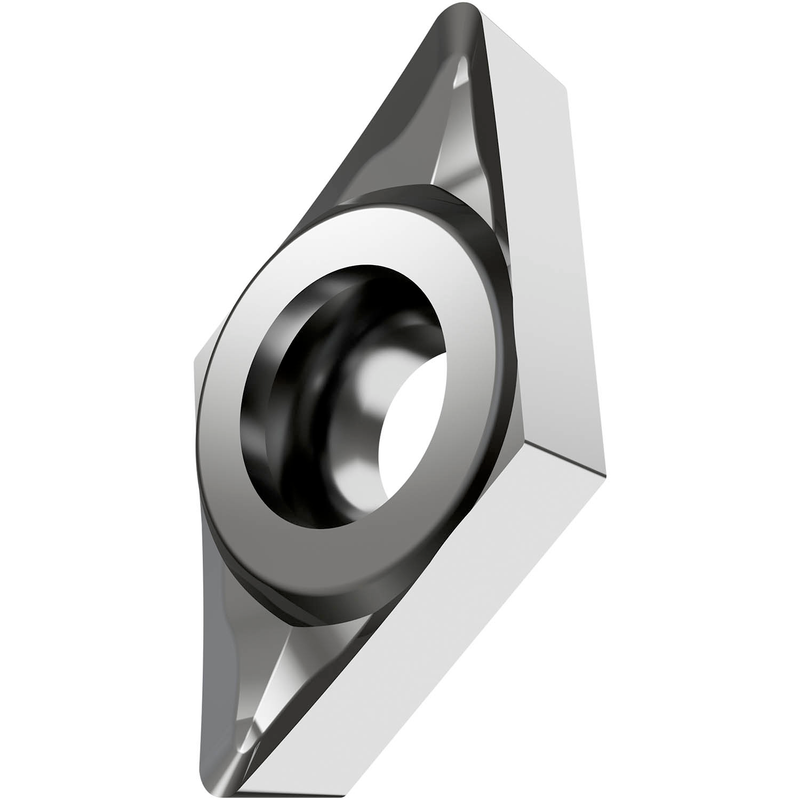

DCGT 32.50.5F-AL:HF7
DCGT 32.50.5F-AL:HF7

DCGT 32.50.5F-AL:HF7

UGC DOR6752066
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.61 CAD - $19.61 CAD
$19.61 CAD
$19.61 CAD - $19.61 CAD
$19.61 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur 5/32", rayon de bec 1/128", précision d'indexation selon la classe de tolérance ISO-G, brise-copeaux AL avec arêtes de coupe vives, en nuance HF7, un carbure WC-Co à grains fins non revêtu dans la plage ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)DCGT 32.50.5F-AL:HF7
Product Name (ISO)DCGT 11T302F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6752066
Product FamilyDCGT
Insert Geometry
Insert DesignDCGT
Insert Shape Code (SC)D - angle compris rhombique 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number6752066
EAN3603602874320
File Type Download
DCGT 32.50.5F-AL:HF7 — Line Drawing PDF Download
