XPHT 160408F-FA:HF7
XPHT 160408F-FA:HF7

XPHT 160408F-FA:HF7

UGC DOR6752075
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.61 CAD - $32.61 CAD
$32.61 CAD
$32.61 CAD - $32.61 CAD
$32.61 CAD

Vendu en lots de : 10

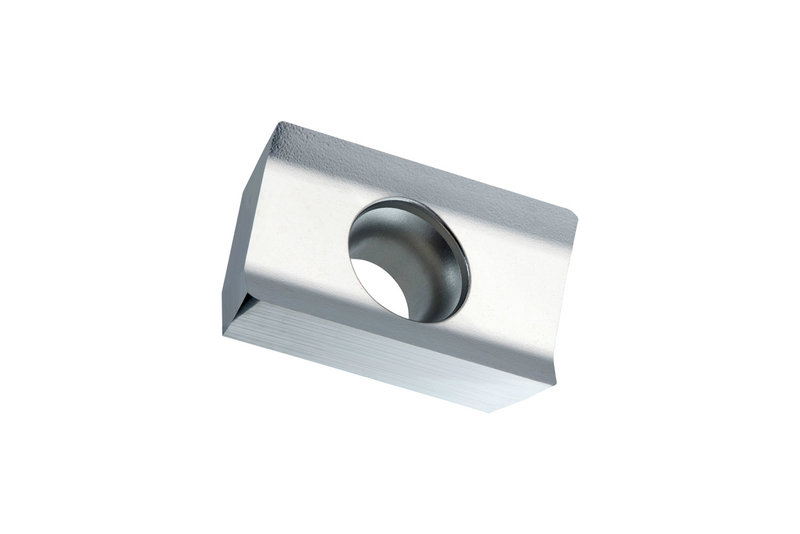

Plaquette de fraisage simple face XPHT 1604 avec brise-copeaux, forme spéciale pour une profondeur de coupe maximale de 15 mm, avec un rayon de bec de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO H et une géométrie FA avec arêtes vives, carbure WC-Co à grains fins non revêtu HF7 de classe ISO N10-N25 pour l'usinage des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XPHT 160408F-FA:HF7
GradeHF7
Chipbreaker (CBMD)FA
Product Number6752075
Product FamilyXPHT 16-FA

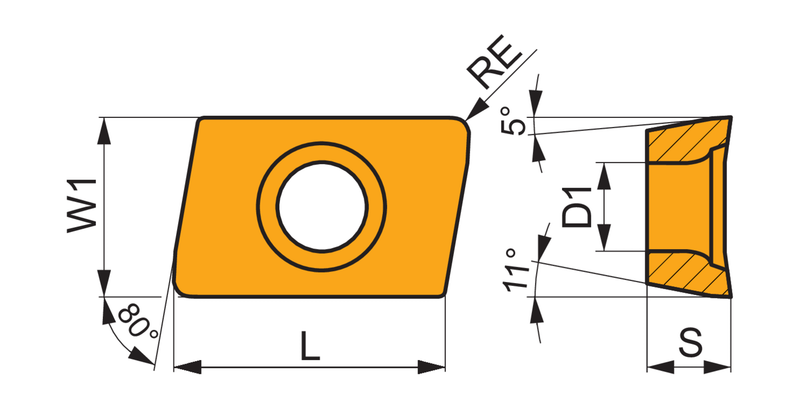

Insert Geometry
Insert DesignPHXT
Insert Shape Code (SC)X - Conception spéciale
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.591"
Depth of Cut Max — mm (APMX)15.0 mm
Tool Information
Reference Numbers
EDP Number6752075
EAN3603602874412
File Type Download
XPHT 160408F-FA:HF7 — Line Drawing PDF Download
