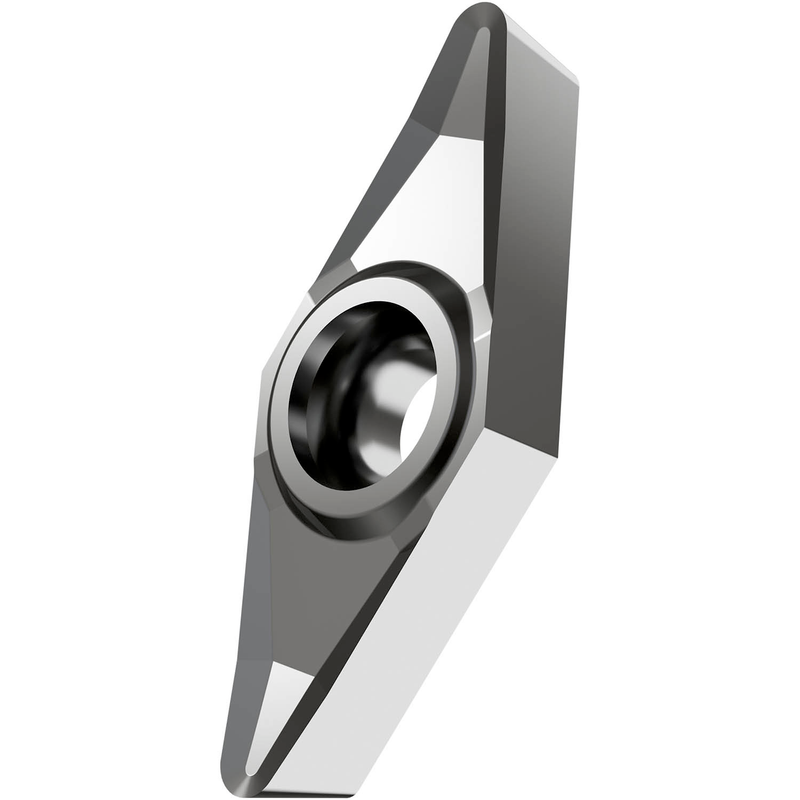

VCGT 220.5F-AL:HF7
VCGT 220.5F-AL:HF7

VCGT 220.5F-AL:HF7

UGC DOR6752080
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.86 CAD - $24.86 CAD
$24.86 CAD
$24.86 CAD - $24.86 CAD
$24.86 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïdale 35° avec dépouille 7°, diamètre du cercle inscrit 1/4", épaisseur 1/8", rayon de bec 1/128", précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux AL avec arêtes vives, en nuance HF7, un carbure WC-Co à grains fins non revêtu de la gamme ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 220.5F-AL:HF7
Product Name (ISO)VCGT 110302F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6752080
Product FamilyCGTV
Insert Geometry
Insert DesignTCGV
Insert Shape Code (SC)V - angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.11"
Depth of Cut Max — mm (APMX)2.8 mm
Tool Information
Reference Numbers
EDP Number6752080
EAN3603602874467
File Type Download
VCGT 220.5F-AL:HF7 — Line Drawing PDF Download
