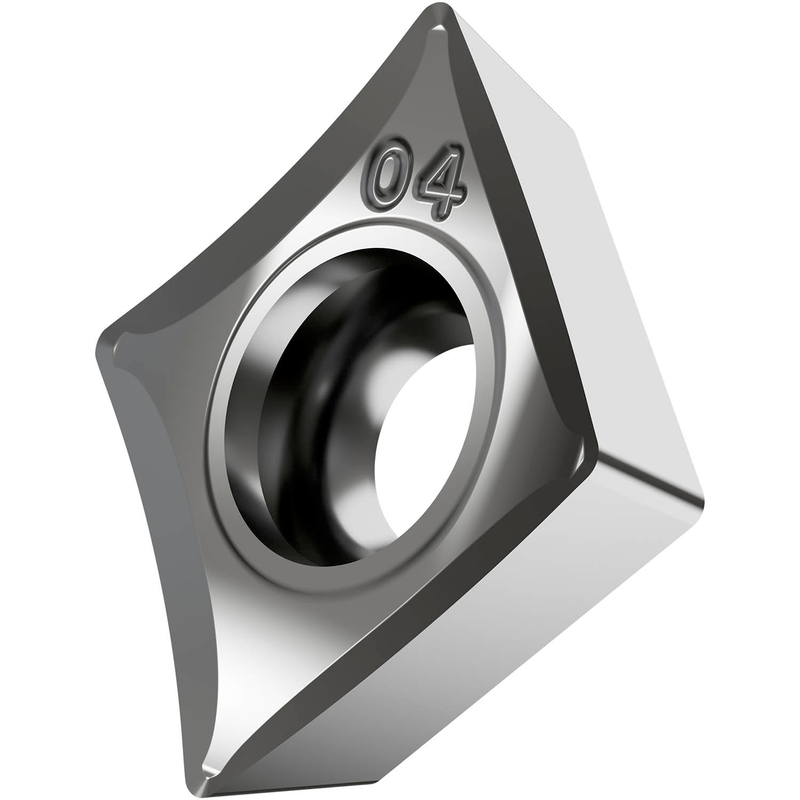

CCGT 32.50.5F-AL:HF7
CCGT 32.50.5F-AL:HF7

CCGT 32.50.5F-AL:HF7

UGC DOR6752084
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$16.83 CAD - $16.83 CAD
$16.83 CAD
$16.83 CAD - $16.83 CAD
$16.83 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde à 80° avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/128", précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux AL avec arêtes vives, en nuance HF7, un carbure WC-Co non revêtu à grain fin dans la gamme ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGT 32.50.5F-AL:HF7
Product Name (ISO)CCGT 09T302F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6752084
Product FamilyTACG
Insert Geometry
Insert DesignTACG
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6752084
EAN3603602874504
Material Group Suitability
N — Non-Ferrous Metals Usage principal
File Type Download
CCGT 32.50.5F-AL:HF7 — Line Drawing PDF Download
