SCGT 432F-AL:HF7
SCGT 432F-AL:HF7

SCGT 432F-AL:HF7

UGC DOR6752103
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.26 CAD - $18.26 CAD
$18.26 CAD
$18.26 CAD - $18.26 CAD
$18.26 CAD

Vendu en lots de : 10

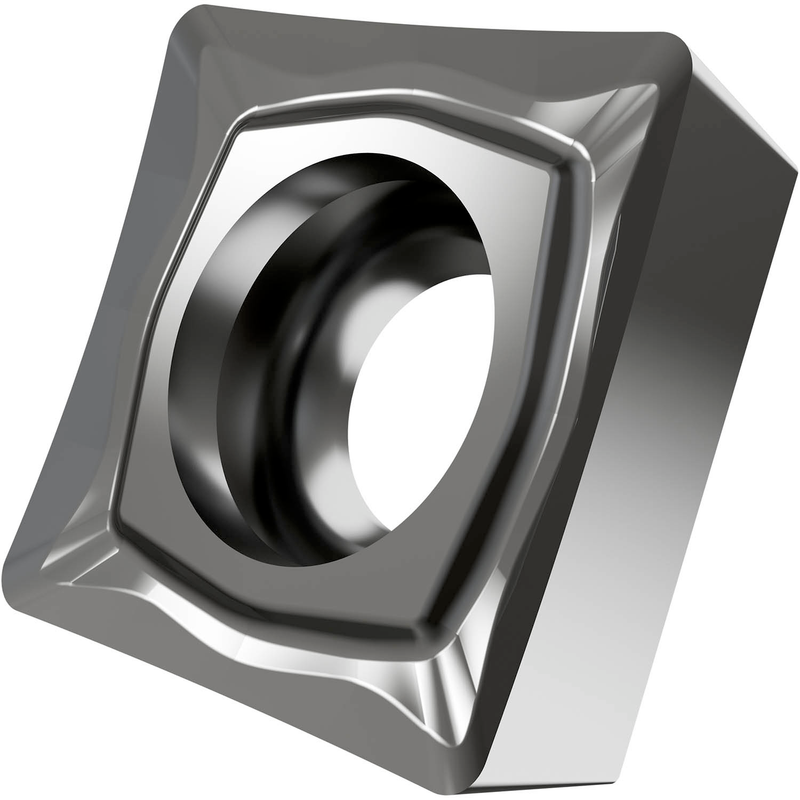

Plaquette de tournage positive simple face, carrée avec dépouille de 7°, diamètre du cercle inscrit de 12,7 mm (1/2"), épaisseur de 4,76 mm (3/16"), rayon de bec de 0,79 mm (1/32"), précision de division selon la classe de tolérance ISO G, brise-copeaux AL à arêtes vives, en nuance HF7, un carbure WC-Co à grain fin non revêtu dans la plage ISO N10-N25, pour l'usinage léger à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)SCGT 432F-AL:HF7
Product Name (ISO)SCGT 120408F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6752103
Product FamilySCGT

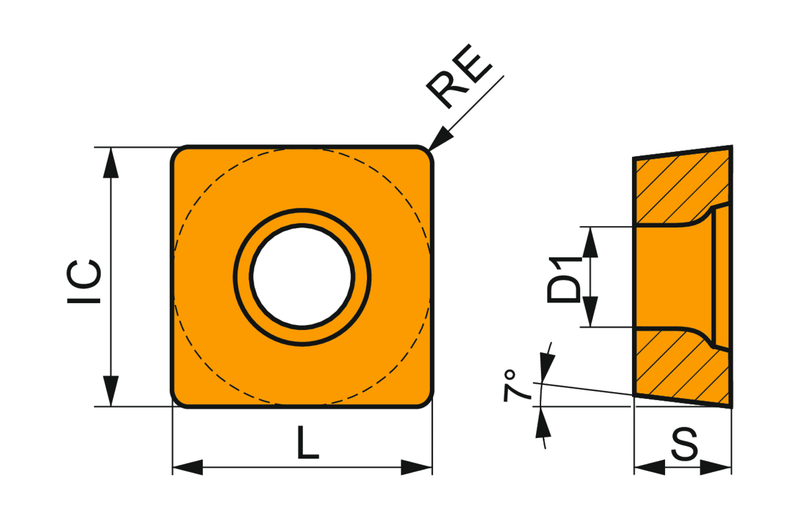

Insert Geometry
Insert DesignSCGT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Reference Numbers
EDP Number6752103
EAN3603602874696
File Type Download
SCGT 432F-AL:HF7 — Line Drawing PDF Download
