LNUX 40-1129003:6630
LNUX 40-1129003:6630

LNUX 40-1129003:6630

UGC DOR6752120
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$126.43 CAD - $126.43 CAD
$126.43 CAD
$126.43 CAD - $126.43 CAD
$126.43 CAD

Vendu en lots de : 5

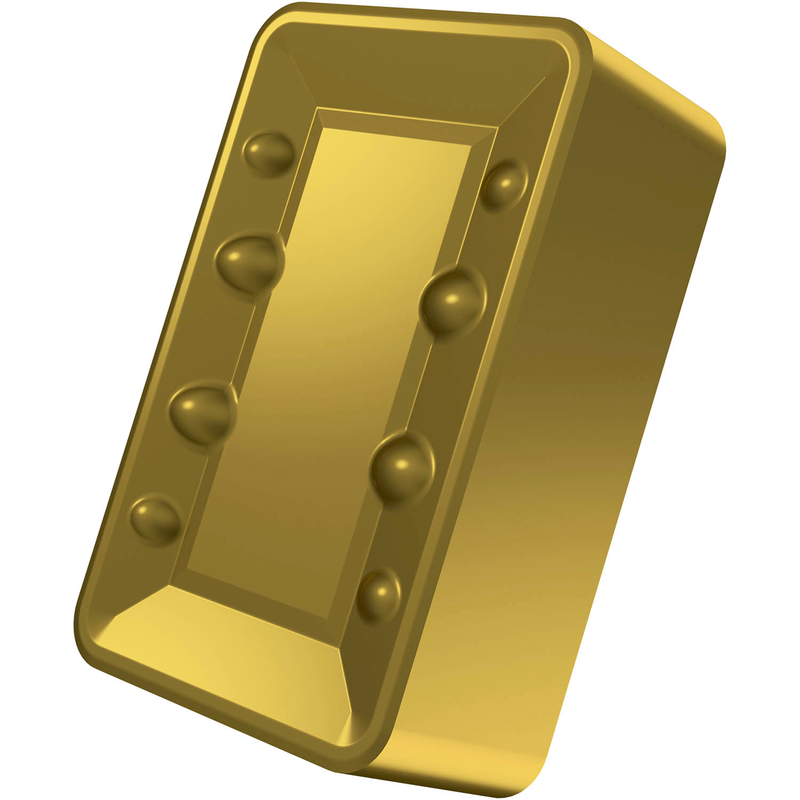

Plaquette négative spéciale pour tournage, rectangulaire avec une arête principale de 40mm, rayon de bec de 3.2mm et une précision de positionnement selon la classe de tolérance ISO-U, brise-copeaux 1129003, en nuance 6630, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P15-P35, pour l'usinage très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNUX 40-1129003:6630
Grade6630
Chipbreaker (CBMD)40 - 03
Product Number6752120
Product FamilyLNUX 40, LN.X 50

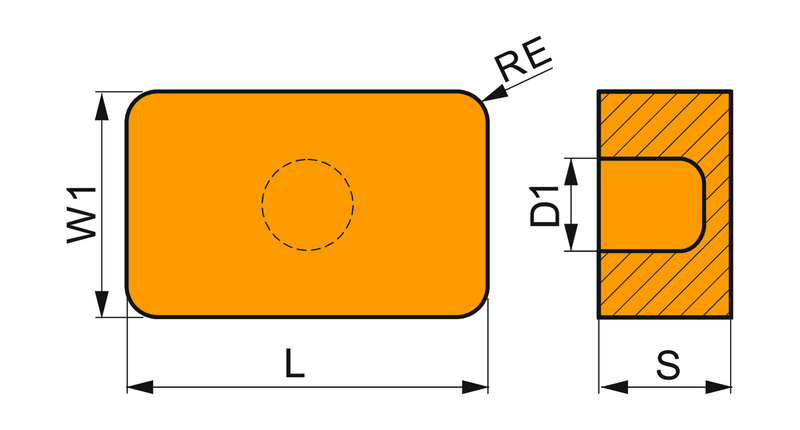

Insert Geometry
Insert DesignLNUX 40, LN.X 50
Insert Shape Code (SC)L - rectangulaire
Insert Geometry
Insert Thickness — in (S)0.551"
Insert Thickness — mm (S)14.0 mm
Corner Radius — in (RE)0.126"
Corner Radius — mm (RE)3.2 mm
Depth of Cut Max — in (APMX)1.063"
Depth of Cut Max — mm (APMX)27.0 mm
Tool Information
Reference Numbers
EDP Number6752120
EAN3603602874863
File Type Download
LNUX 40-1129003:6630 — Line Drawing PDF Download
