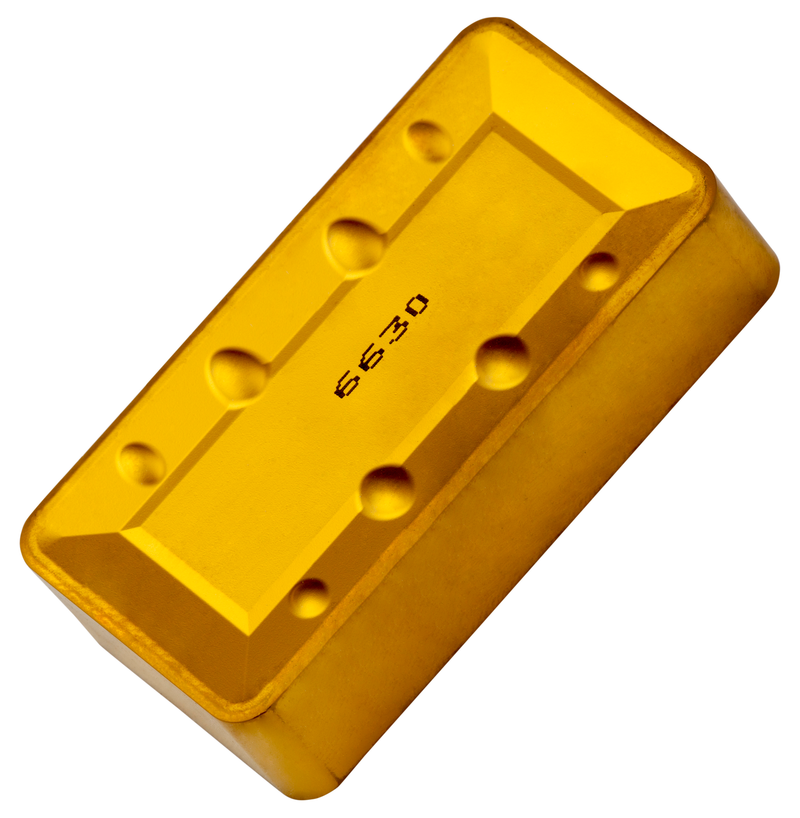

LNUX 50-1275000:6630
LNUX 50-1275000:6630

LNUX 50-1275000:6630

UGC DOR6752126
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$153.57 CAD - $153.57 CAD
$153.57 CAD
$153.57 CAD - $153.57 CAD
$153.57 CAD

Vendu en lots de : 2

Plaquette négative spéciale pour tournage, rectangulaire avec une arête principale de 50,8 mm de long, un rayon de bec de 3,2 mm et une précision de positionnement selon la classe de tolérance ISO U, brise-copeaux 1275000, en nuance 6630, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour l'usinage très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNUX 50-1275000:6630
Grade6630
Chipbreaker (CBMD)Avec brise-copeaux -aucune désignation
Product Number6752126
Product FamilyLNUX 40, LN.X 50
Insert Geometry
Insert DesignLNUX 40, LN.X 50
Insert Shape Code (SC)L - rectangulaire
Insert Geometry
Insert Thickness — in (S)0.551"
Insert Thickness — mm (S)14.0 mm
Corner Radius — in (RE)0.126"
Corner Radius — mm (RE)3.2 mm
Depth of Cut Max — in (APMX)1.417"
Depth of Cut Max — mm (APMX)36.0 mm
Tool Information
Reference Numbers
EDP Number6752126
EAN3603602874924
File Type Download
LNUX 50-1275000:6630 — Line Drawing PDF Download
