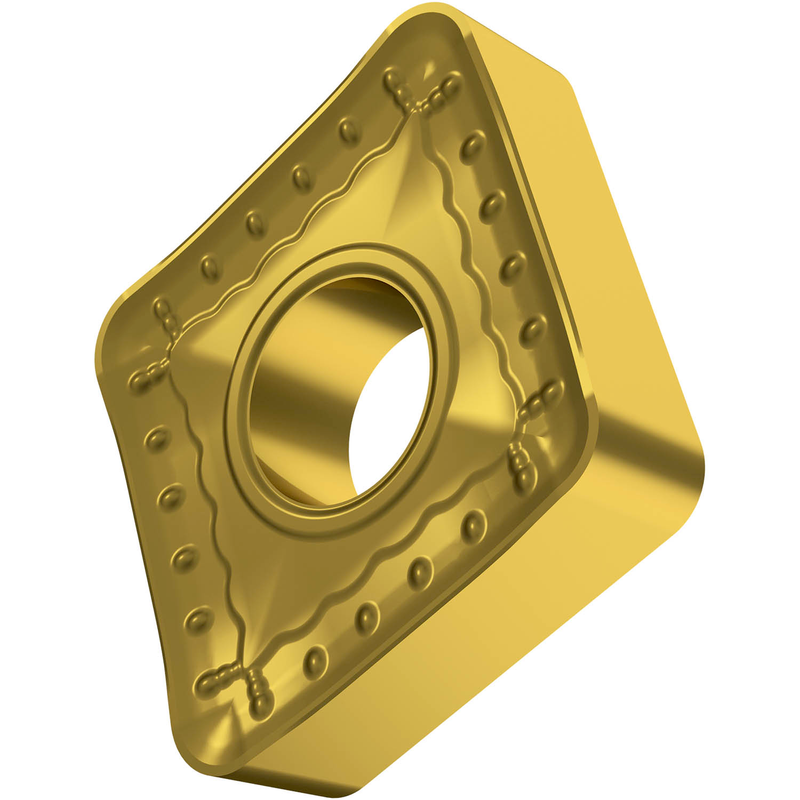

CNMM 866-OR:6630
CNMM 866-OR:6630

CNMM 866-OR:6630

UGC DOR6752128
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.29 CAD - $58.29 CAD
$58.29 CAD
$58.29 CAD - $58.29 CAD
$58.29 CAD

Vendu en lots de : 5

Plaquette négative double face, rhomboïde à 80° avec un diamètre de cercle inscrit de 1", une épaisseur de 3/8", un rayon de bec de 3/32" et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux OR, en nuance 6630, un carbure WC-Co à gradient de fonctions revêtu MT-CVD dans la gamme ISO P15 - P35, pour l'usinage moyen à très lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMM 866-OR:6630
Product Name (ISO)CNMM 250924F-OR:6630
Grade6630
Chipbreaker (CBMD)OU_
Product Number6752128
Product FamilyCNMM
Insert Geometry
Insert DesignCNMM
Insert Shape Code (SC)C - angle inclus rhombique 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.63"
Depth of Cut Max — mm (APMX)16.0 mm
Tool Information
Reference Numbers
EDP Number6752128
EAN3603602874948
File Type Download
CNMM 866-OR:6630 — Line Drawing PDF Download
