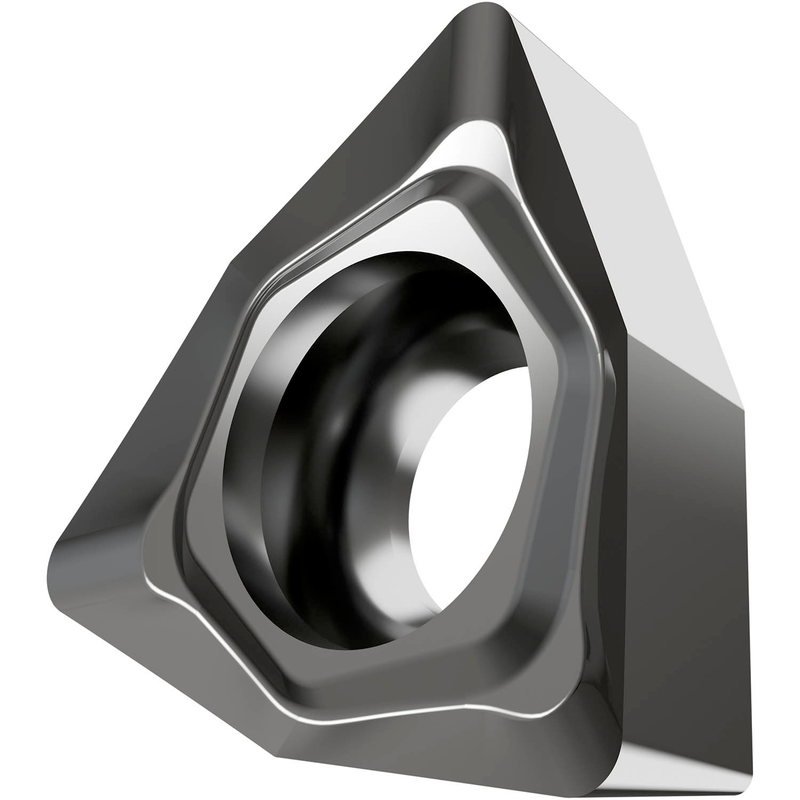

WCGT 433F-AL:HF7
WCGT 433F-AL:HF7

WCGT 433F-AL:HF7

UGC DOR6752407
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.57 CAD - $20.57 CAD
$20.57 CAD
$20.57 CAD - $20.57 CAD
$20.57 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, trigon 80° avec dépouille de 7°, diamètre du cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 3/64", précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux AL avec arêtes de coupe vives, en nuance HF7, un carbure WC-Co à grains fins non revêtu dans la gamme ISO N10-N25, pour l'usinage fin à lourd des métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)WCGT 433F-AL:HF7
Product Name (ISO)WCGT 080412F-AL:HF7
GradeHF7
Chipbreaker (CBMD)AL
Product Number6752407
Product FamilyWCGT
Insert Geometry
Insert DesignSGWC
Insert Shape Code (SC)W - trigone
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.22"
Depth of Cut Max — mm (APMX)5.6 mm
Tool Information
Reference Numbers
EDP Number6752407
EAN3603602877734
File Type Download
WCGT 433F-AL:HF7 — Line Drawing PDF Download
