WNMF 201380-PM-S01:6630
WNMF 201380-PM-S01:6630

WNMF 201380-PM-S01:6630

UGC DOR6752814
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$120.71 CAD - $120.71 CAD
$120.71 CAD
$120.71 CAD - $120.71 CAD
$120.71 CAD

Vendu en lots de : 3

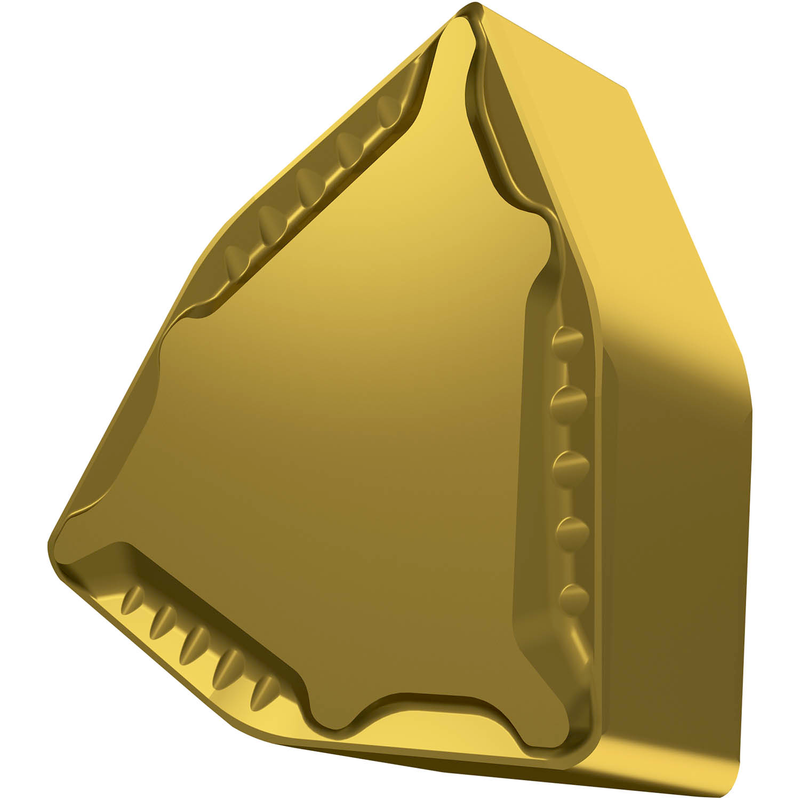

Plaquette de décalaminage double face négative, trigon 80° avec diamètre de cercle inscrit de 31,75 mm, épaisseur de 13 mm pour une profondeur de coupe de 8 mm, précision de positionnement selon la classe de tolérance ISO M, brise-copeaux PM avec préparation d'arête de coupe S01, en nuance 6630, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD dans la gamme ISO P15-P35, pour aciers à haute résistance

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNMF 201380-PM-S01:6630
Grade6630
Chipbreaker (CBMD)MP-S01
Product Number6752814
Product FamilyFNMM

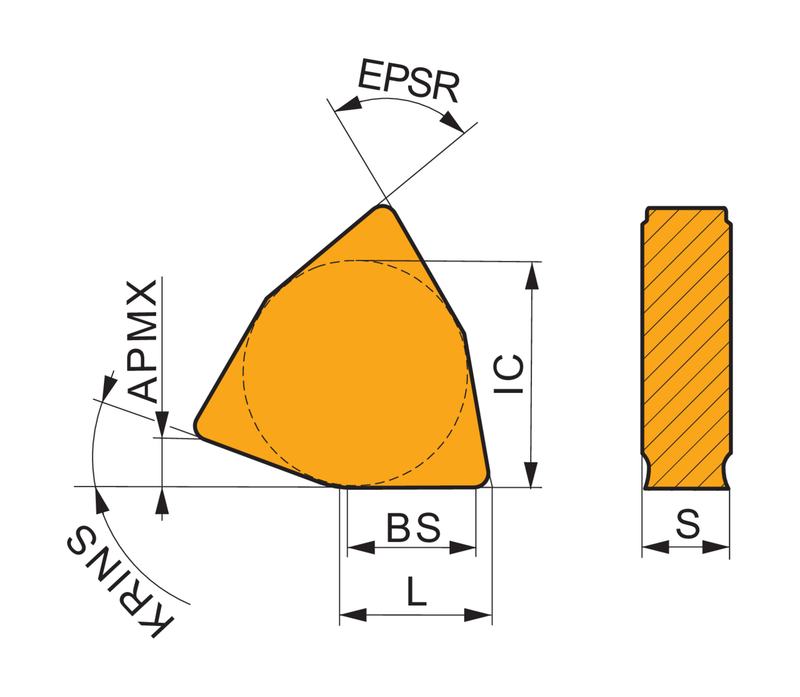

Insert Geometry
Insert DesignNMFO
Insert Shape Code (SC)W - trigon
Inscribed Circle Dia. — in (IC)1.25"
Inscribed Circle Dia. — mm (IC)31.75 mm
Insert Thickness — in (S)0.512"
Insert Thickness — mm (S)13.0 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6752814
EAN3603602881809
File Type Download
WNMF 201380-PM-S01:6630 — Line Drawing PDF Download
