GNFL 401035-PM-S01:6630
GNFL 401035-PM-S01:6630

GNFL 401035-PM-S01:6630

UGC DOR6752818
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.29 CAD - $74.29 CAD
$74.29 CAD
$74.29 CAD - $74.29 CAD
$74.29 CAD

Vendu en lots de : 5

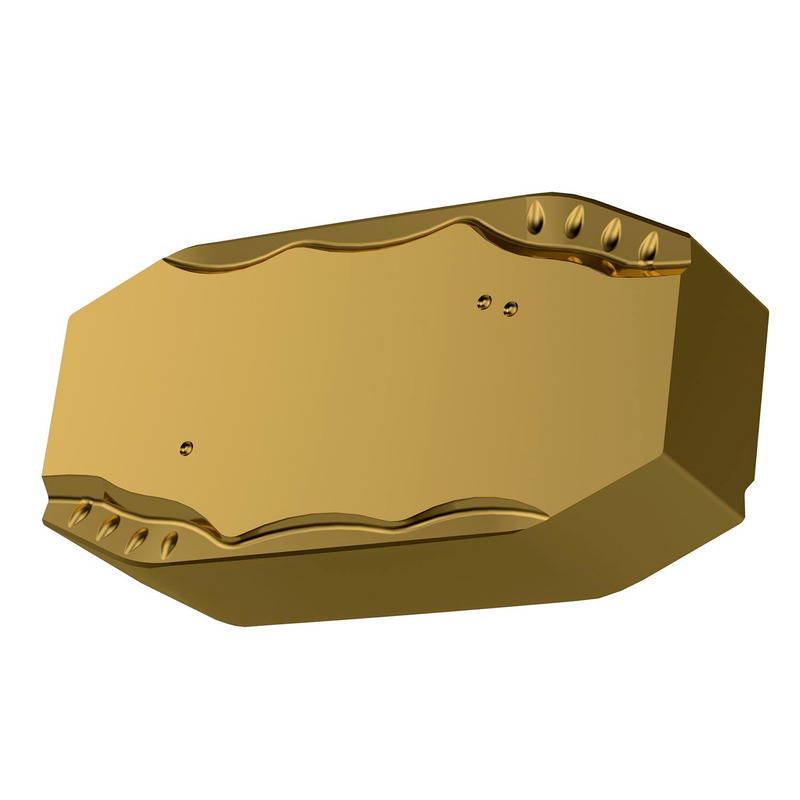

Plaquette de bar peeling négative double-face, rectangulaire, de 40 mm de long et 9,6 mm d'épaisseur, pour une profondeur de coupe de 3,5 mm, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux PM avec préparation d'arête de coupe S01, en nuance 6630, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour les aciers à haute résistance

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNGF 401035-PM-S01:6630
Grade6630
Chipbreaker (CBMD)MP
Product Number6752818
Product FamilyGNLF 40

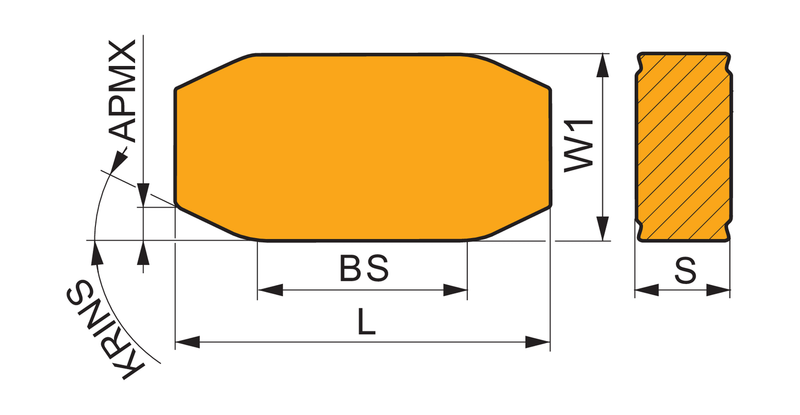

Insert Geometry
Insert DesignGNFL 40
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.394"
Insert Thickness — mm (S)10.15 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number6752818
EAN3603602881847
File Type Download
GNFL 401035-PM-S01:6630 — Line Drawing PDF Download
