LNXR 381240-PR:6630
LNXR 381240-PR:6630

LNXR 381240-PR:6630

UGC DOR6752820
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$69.79 CAD - $69.79 CAD
$69.79 CAD
$69.79 CAD - $69.79 CAD
$69.79 CAD

Vendu en lots de : 5

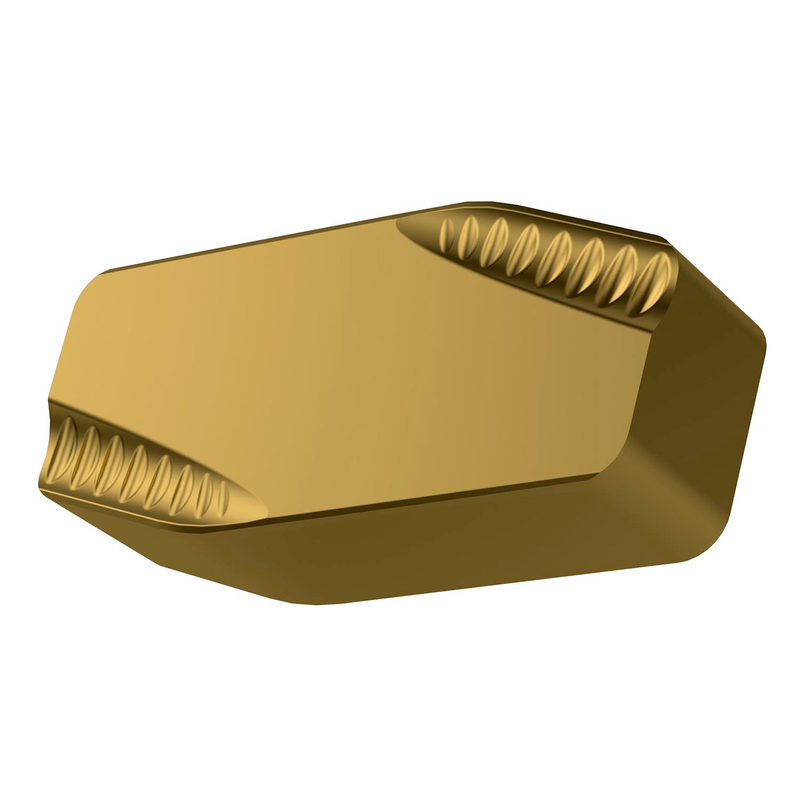

Plaquette négative simple face de tournage de barres, rectangulaire, de 38,25 mm de long, 12 mm d'épaisseur pour une profondeur de coupe de 4 mm, brise-copeaux PR, en nuance 6630, un carbure WC-Co à gradient fonctionnel à revêtement MT-CVD, dans la plage ISO P15-P35, pour aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNXR 381240-PR:6630
Grade6630
Chipbreaker (CBMD)RP
Product Number6752820
Product FamilyLNXR
Insert Geometry
Insert DesignLNXR
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number6752820
EAN3603602881861
File Type Download

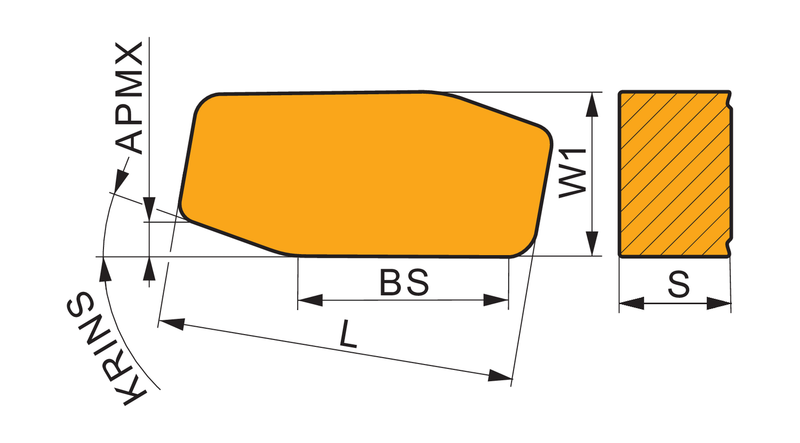

LNXR 381240-PR:6630 — Line Drawing PDF Download
