WNGU 150935-PM-S02:6630
WNGU 150935-PM-S02:6630

WNGU 150935-PM-S02:6630

UGC DOR6752835
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.71 CAD - $65.71 CAD
$65.71 CAD
$65.71 CAD - $65.71 CAD
$65.71 CAD

Vendu en lots de : 5

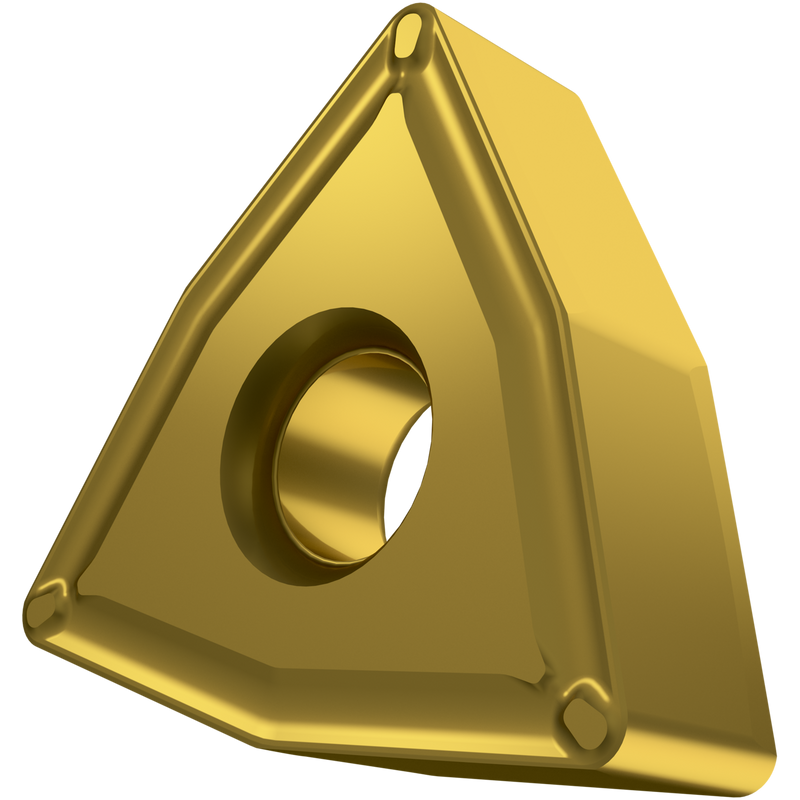

Plaquette de bar peeling négative double face, trigon de 80° avec diamètre de cercle inscrit de 22,225 mm, épaisseur de 9,52 mm pour une profondeur de coupe de 3,5 mm, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux PM avec préparation d'arête de coupe S02, en nuance 6630, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour aciers à résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNGU 150935-PM-S02:6630
Grade6630
Chipbreaker (CBMD)MP-S02
Product Number6752835
Product FamilyWNGU

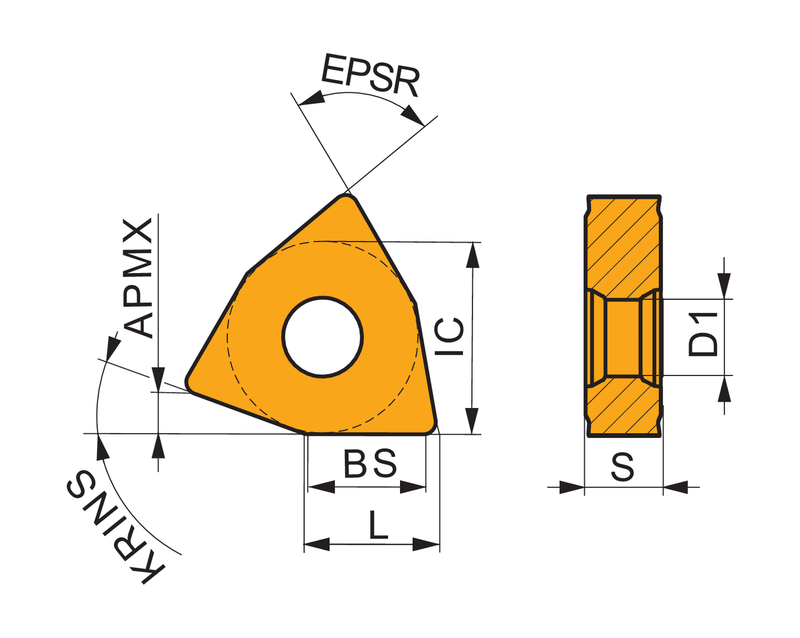

Insert Geometry
Insert DesignNGNU
Insert Shape Code (SC)W - trigone
Inscribed Circle Dia. — in (IC)0.875"
Inscribed Circle Dia. — mm (IC)22.23 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.52 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number6752835
EAN3603602882011
File Type Download
WNGU 150935-PM-S02:6630 — Line Drawing PDF Download
