WNXJ 201380-PR-S01:6630
WNXJ 201380-PR-S01:6630

WNXJ 201380-PR-S01:6630

UGC DOR6752844
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$125.00 CAD - $125.00 CAD
$125.00 CAD
$125.00 CAD - $125.00 CAD
$125.00 CAD

Vendu en lots de : 3

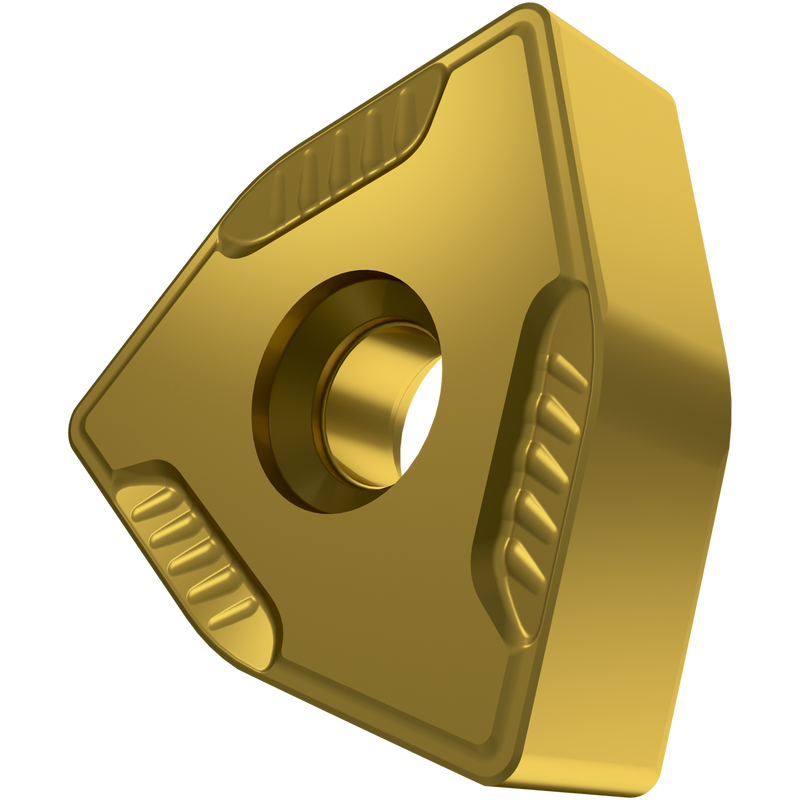

Plaquette négative double face pour le tournage-écroûtage, trigon 80° avec diamètre de cercle inscrit de 31,75 mm, épaisseur de 13 mm pour une profondeur de coupe de 8 mm, brise-copeaux PR avec préparation d'arête de coupe S01, en nuance 6630, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour aciers à haute résistance

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNXJ 201380-PR-S01:6630
Grade6630
Chipbreaker (CBMD)RP-S01
Product Number6752844
Product FamilyWNXJ

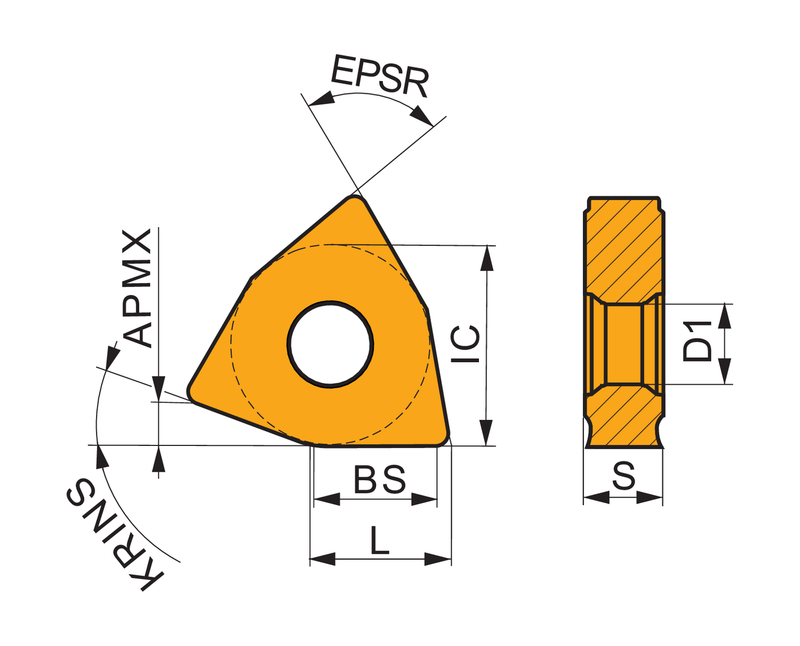

Insert Geometry
Insert DesignWNXJ
Insert Shape Code (SC)W - trigon
Inscribed Circle Dia. — in (IC)1.25"
Inscribed Circle Dia. — mm (IC)31.75 mm
Insert Thickness — in (S)0.512"
Insert Thickness — mm (S)13.0 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6752844
EAN3603602882103
File Type Download
WNXJ 201380-PR-S01:6630 — Line Drawing PDF Download
