WNXJ 150935-PM:6630
WNXJ 150935-PM:6630

WNXJ 150935-PM:6630

UGC DOR6752846
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.64 CAD - $62.64 CAD
$62.64 CAD
$62.64 CAD - $62.64 CAD
$62.64 CAD

Vendu en lots de : 10

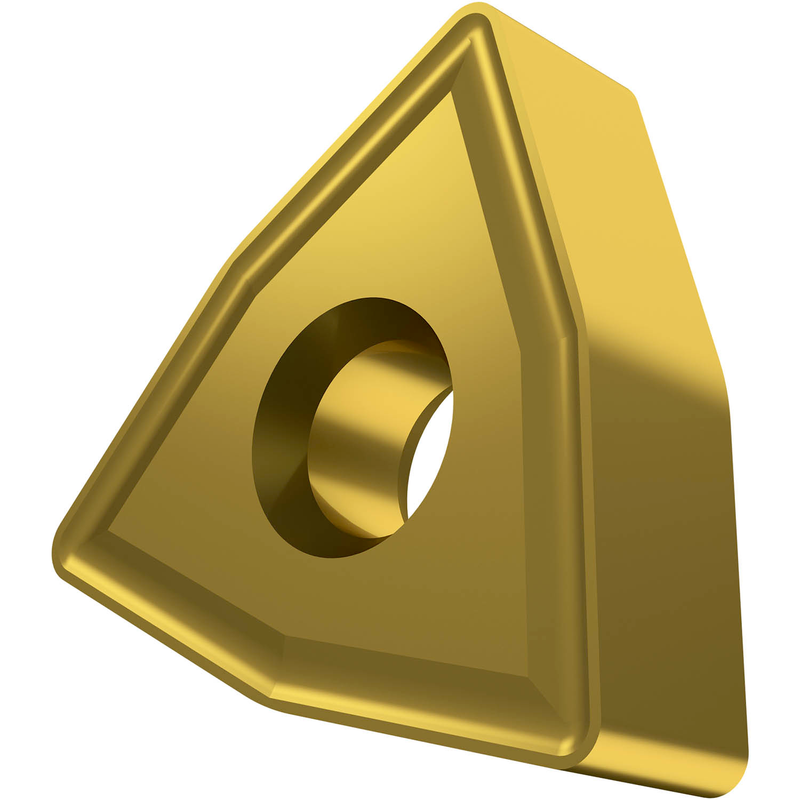

Plaquette à barre d'épluchage négative double-face, trigon 80° avec diamètre de cercle inscrit de 22,225mm, épaisseur de 9,52mm pour une profondeur de coupe de 3,5mm, brise-copeaux PM, en nuance 6630, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNXJ 150935-PM:6630
Grade6630
Chipbreaker (CBMD)MP
Product Number6752846
Product FamilyWNXJ

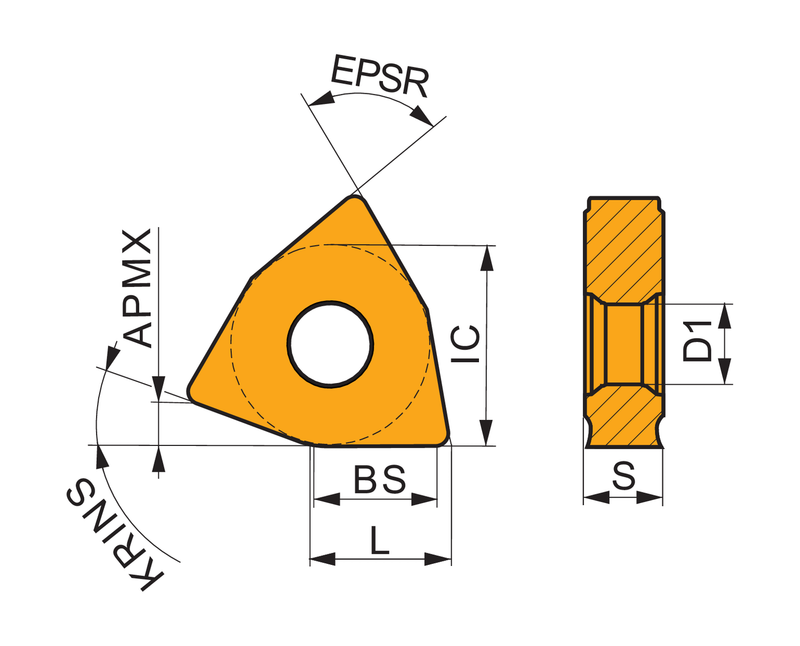

Insert Geometry
Insert DesignWNXJ
Insert Shape Code (SC)W - trigone
Inscribed Circle Dia. — in (IC)0.875"
Inscribed Circle Dia. — mm (IC)22.23 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.52 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number6752846
EAN3603602882127
File Type Download
WNXJ 150935-PM:6630 — Line Drawing PDF Download
