PSR4-R23:5040
PSR4-R23:5040

PSR4-R23:5040

UGC DOR6753001
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.21 CAD - $70.21 CAD
$70.21 CAD
$70.21 CAD - $70.21 CAD
$70.21 CAD

Vendu en lots de : 5

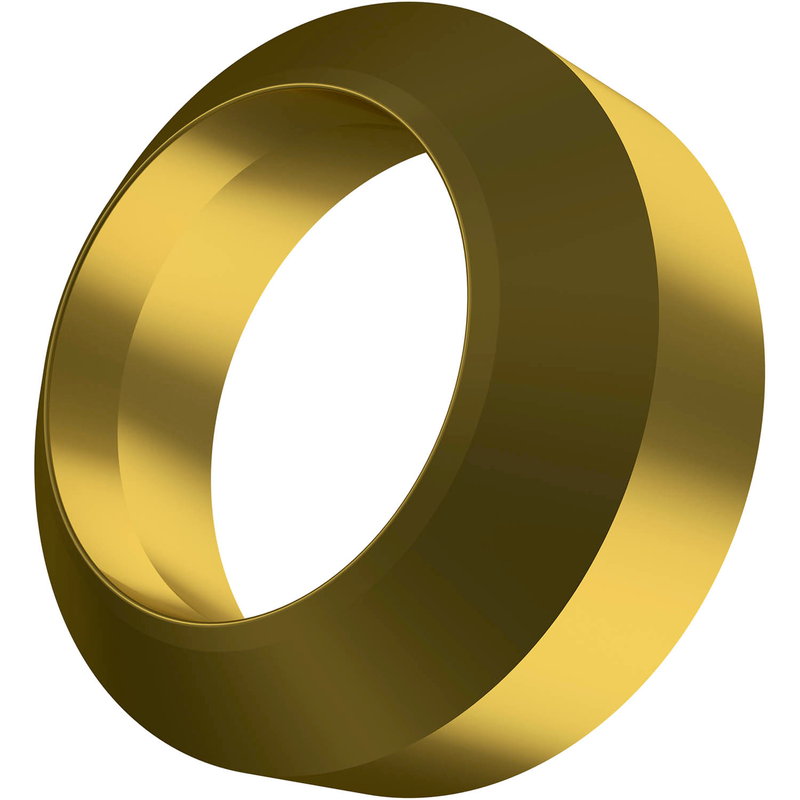

Anneau d'ébarbage avec un diamètre extérieur de 30 mm, un diamètre intérieur de 20 mm, une épaisseur de 12 mm et un rayon de travail de 22,8 mm pour les diamètres de tube de 48 à 72 mm, carbure WC-(Ti, Ta, Nb)C-Co avec revêtement MT-CVD 5040 dans les plages de classe ISO P25-P45 et M25-M35 pour l'ébavurage intérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR4-R23:5040
Grade5040
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6753001
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)1.181"
Inscribed Circle Dia. — mm (IC)30.0 mm
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Tool Information
Reference Numbers
EDP Number6753001
EAN3603602883674
File Type Download
PSR4-R23:5040 — Line Drawing PDF Download
