PSR1-R8:5040
PSR1-R8:5040

PSR1-R8:5040

UGC DOR6753022
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.71 CAD - $37.71 CAD
$37.71 CAD
$37.71 CAD - $37.71 CAD
$37.71 CAD

Vendu en lots de : 10

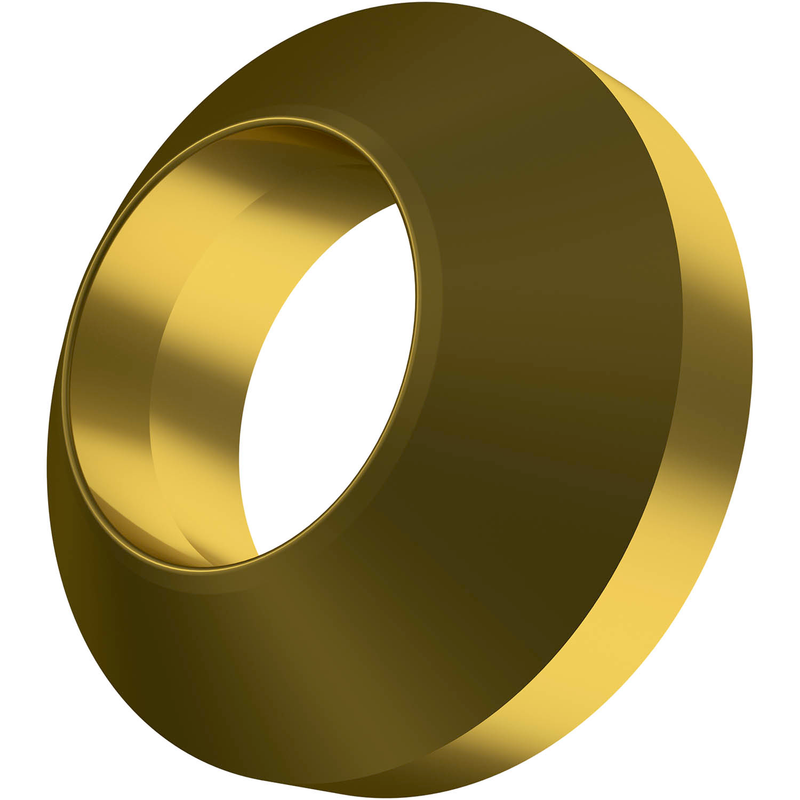

Bague d'écroutage de 13 mm de diamètre extérieur, 7 mm de diamètre intérieur, 5 mm d'épaisseur et 8 mm de rayon de travail pour les diamètres de tubes de 22 à 24 mm, en carbure WC-(Ti, Ta, Nb)C-Co revêtu 5040 MT-CVD, dans les gammes de classes ISO P25-P45 et M25-M35 pour l'ébavurage de l'intérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR1-R8:5040
Grade5040
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6753022
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.512"
Inscribed Circle Dia. — mm (IC)13.0 mm
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.0 mm
Tool Information
Reference Numbers
EDP Number6753022
EAN3603602883889
File Type Download
PSR1-R8:5040 — Line Drawing PDF Download
