PSR2-R10:5040
PSR2-R10:5040

PSR2-R10:5040

UGC DOR6753028
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.71 CAD - $42.71 CAD
$42.71 CAD
$42.71 CAD - $42.71 CAD
$42.71 CAD

Vendu en lots de : 10

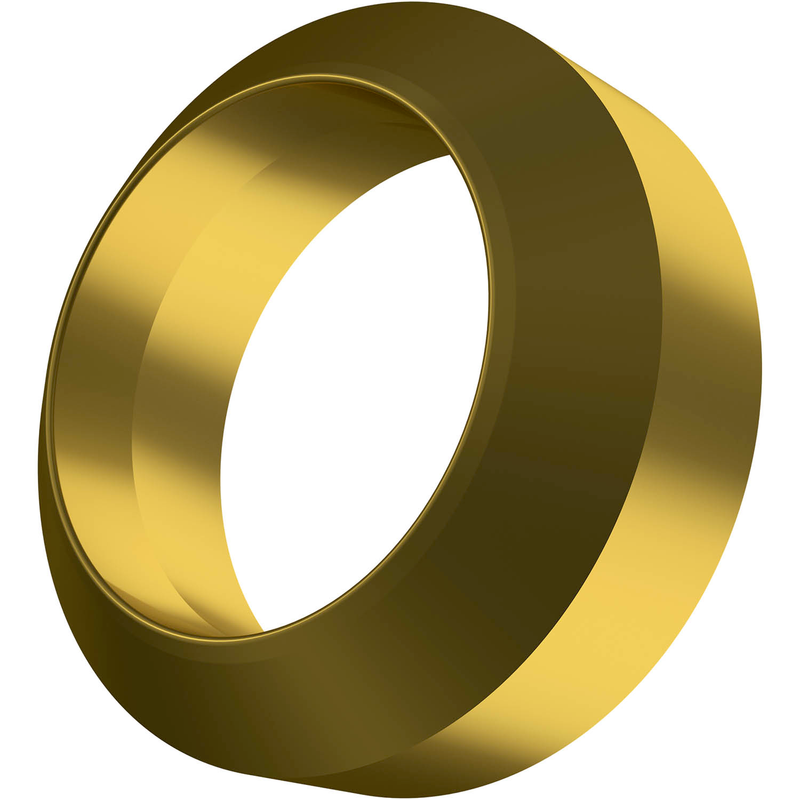

Anneau d'écharpe d'un diamètre extérieur de 19 mm, d'un diamètre intérieur de 9 mm, d'une épaisseur de 8 mm et d'un rayon de travail de 10,2 mm pour des diamètres de tube de 26 à 28 mm, carbure 5040 MT-CVD revêtu de WC-(Ti, Ta, Nb)C-Co dans les plages de grades ISO P25-P45 et M25-M35 pour l'ébavurage de l'intérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR2-R10:5040
Grade5040
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6753028
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonale
Inscribed Circle Dia. — in (IC)0.748"
Inscribed Circle Dia. — mm (IC)19.0 mm
Insert Thickness — in (S)0.315"
Insert Thickness — mm (S)8.0 mm
Tool Information
Reference Numbers
EDP Number6753028
EAN3603602883940
File Type Download
PSR2-R10:5040 — Line Drawing PDF Download
