PSR3-R14:S45
PSR3-R14:S45

PSR3-R14:S45

UGC DOR6753035
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.43 CAD - $41.43 CAD
$41.43 CAD
$41.43 CAD - $41.43 CAD
$41.43 CAD

Vendu en lots de : 10

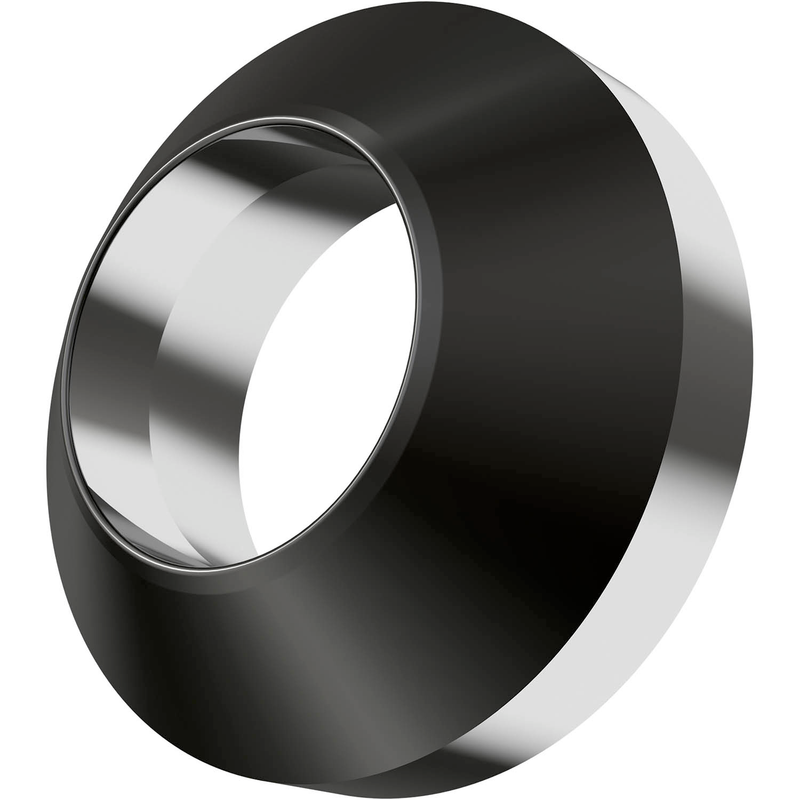

Anneau d'ébarbage d'un diamètre extérieur de 22 mm, d'un diamètre intérieur de 12 mm, d'une épaisseur de 10 mm et d'un rayon de travail de 13,7 mm pour des diamètres de tube de 32 à 41 mm, en carbure WC-(Ti, Ta, Nb)C-Co non revêtu S45 dans les plages de nuances ISO P30-P50 et M30-M40 pour l'ébavurage intérieur de tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR3-R14:S45
GradeS45
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6753035
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonale
Inscribed Circle Dia. — in (IC)0.866"
Inscribed Circle Dia. — mm (IC)22.0 mm
Insert Thickness — in (S)0.394"
Insert Thickness — mm (S)10.0 mm
Tool Information
Reference Numbers
EDP Number6753035
EAN3603602884015
File Type Download
PSR3-R14:S45 — Line Drawing PDF Download
