PSR3-R14:5040
PSR3-R14:5040

PSR3-R14:5040

UGC DOR6753037
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.79 CAD - $49.79 CAD
$49.79 CAD
$49.79 CAD - $49.79 CAD
$49.79 CAD

Vendu en lots de : 10

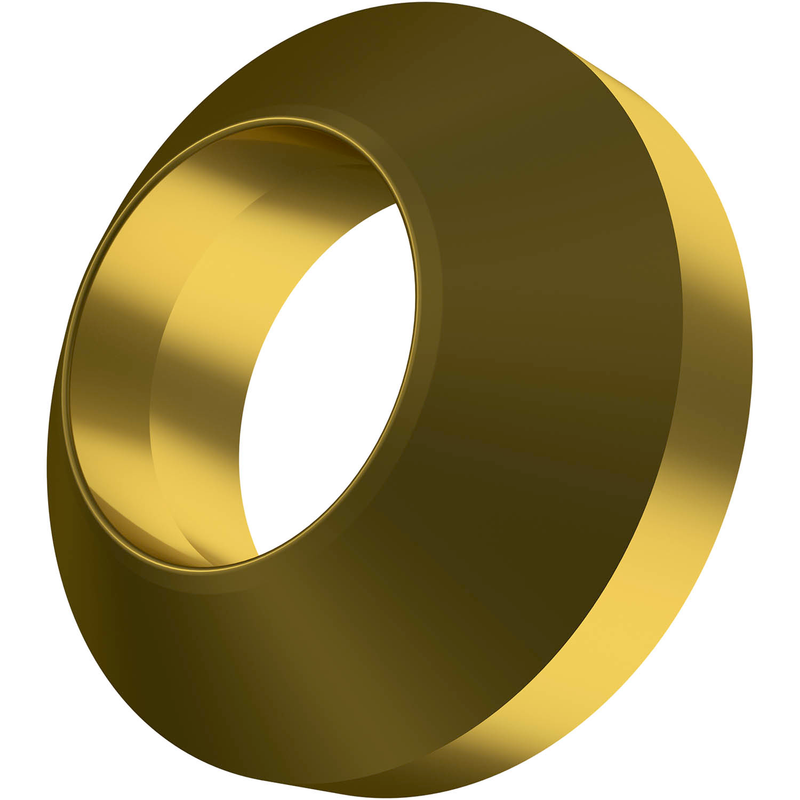

Bague d'ébarbage avec un diamètre extérieur de 22mm, un diamètre intérieur de 12mm, une épaisseur de 10mm et un rayon de travail de 13,7mm pour des diamètres de tubes de 32 à 41mm, en carbure WC-(Ti, Ta, Nb)C-Co revêtu 5040 MT-CVD, dans les plages de nuances ISO P25-P45 et M25-M35 pour l'ébavurage intérieur des tubes et tuyaux en acier et acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR3-R14:5040
Grade5040
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6753037
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.866"
Inscribed Circle Dia. — mm (IC)22.0 mm
Insert Thickness — in (S)0.394"
Insert Thickness — mm (S)10.0 mm
Tool Information
Reference Numbers
EDP Number6753037
EAN3603602884039
File Type Download
PSR3-R14:5040 — Line Drawing PDF Download
