PSR3-R17:5040
PSR3-R17:5040

PSR3-R17:5040

UGC DOR6753040
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.79 CAD - $49.79 CAD
$49.79 CAD
$49.79 CAD - $49.79 CAD
$49.79 CAD

Vendu en lots de : 10

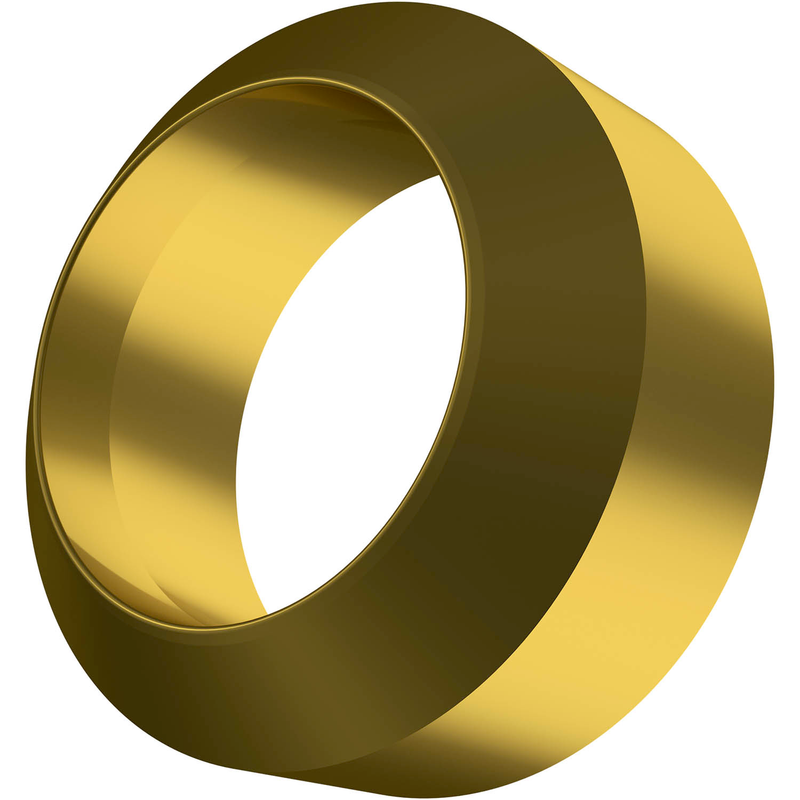

Bague d'écroutage d'un diamètre extérieur de 22 mm, d'un diamètre intérieur de 15 mm, d'une épaisseur de 10 mm et d'un rayon de travail de 17,1 mm pour des diamètres de tube de 41 à 50 mm, en carbure WC-(Ti, Ta, Nb)C-Co revêtu de 5040 MT-CVD, dans les plages de nuances ISO P25-P45 et M25-M35 pour l'ébavurage intérieur de tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR3-R17:5040
Grade5040
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6753040
Product FamilyRSP

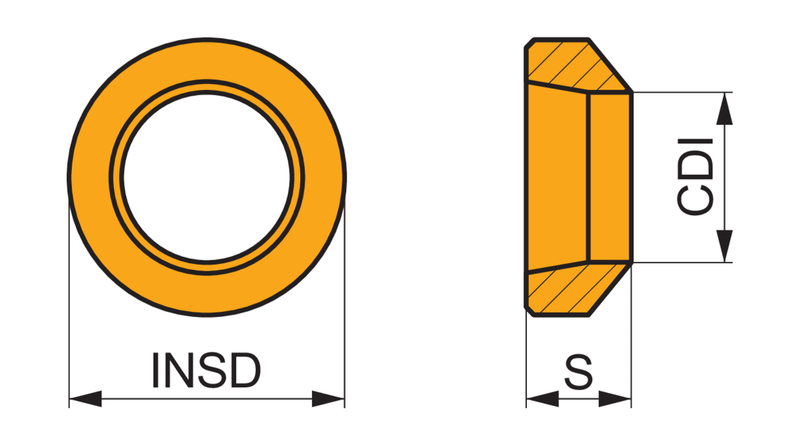

Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonale
Inscribed Circle Dia. — in (IC)0.866"
Inscribed Circle Dia. — mm (IC)22.0 mm
Insert Thickness — in (S)0.394"
Insert Thickness — mm (S)10.0 mm
Tool Information
Reference Numbers
EDP Number6753040
EAN3603602884060
File Type Download
PSR3-R17:5040 — Line Drawing PDF Download
