PSR0-R6:5040
PSR0-R6:5040

PSR0-R6:5040

UGC DOR6753141
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.33 CAD - $35.33 CAD
$35.33 CAD
$35.33 CAD - $35.33 CAD
$35.33 CAD

Vendu en lots de : 10

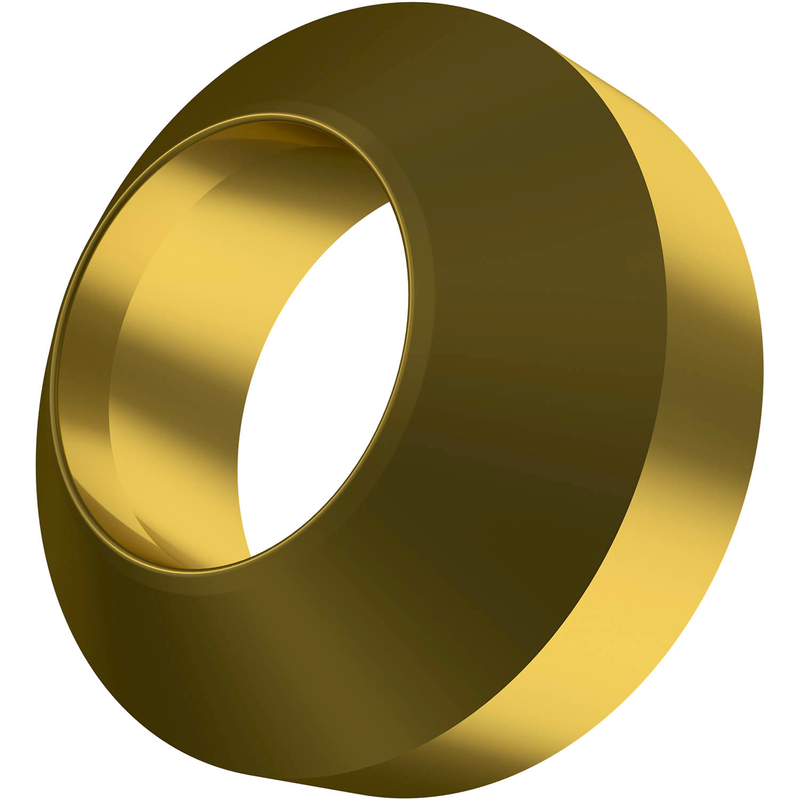

Bague d'écroutage d'un diamètre extérieur de 10mm, d'un diamètre intérieur de 5,5mm, d'une épaisseur de 4,5mm et d'un rayon de travail de 6,3mm pour des diamètres de tube de 17 à 20mm, en carbure WC-(Ti, Ta, Nb)C-Co revêtu MT-CVD 5040 de classes ISO P25-P45 et M25-M35 pour l'ébavurage intérieur de tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR0-R6:5040
Grade5040
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6753141
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.315"
Inscribed Circle Dia. — mm (IC)8.0 mm
Insert Thickness — in (S)0.177"
Insert Thickness — mm (S)4.5 mm
Tool Information
Reference Numbers
EDP Number6753141
EAN3603602885074
File Type Download
PSR0-R6:5040 — Line Drawing PDF Download
