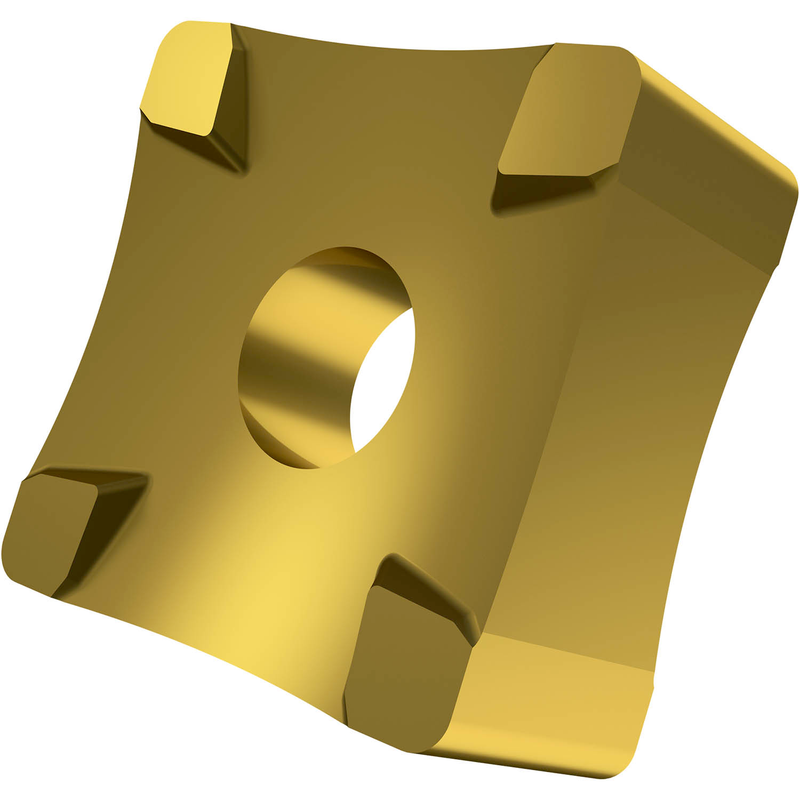

SNMX 25-R120:6640

SNMX 25-R120:6640

UGC DOR6753183
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$92.14 CAD - $92.14 CAD
$92.14 CAD
$92.14 CAD - $92.14 CAD
$92.14 CAD

Vendu en lots de : 10

Plaquette d'écroutage double face, carrée, avec une arête de coupe principale de 25,4 mm, une épaisseur de 12,2 mm et un rayon de travail de 120 mm pour des diamètres de tube de 138 à 174 mm, carbure WC-Co revêtu MT-CVD 6640 dans les plages de nuances ISO P20-P40 et M20-M35 pour l'ébavurage extérieur des tubes en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 25-R120:6640
Grade6640
Chipbreaker (CBMD)Avec brise-copeaux - sans désignation
Product Number6753183
Product FamilySNMX 25-R
Insert Geometry
Insert DesignSNMX 25-R
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.48"
Insert Thickness — mm (S)12.2 mm
Tool Information
Reference Numbers
EDP Number6753183
EAN3603602885494
