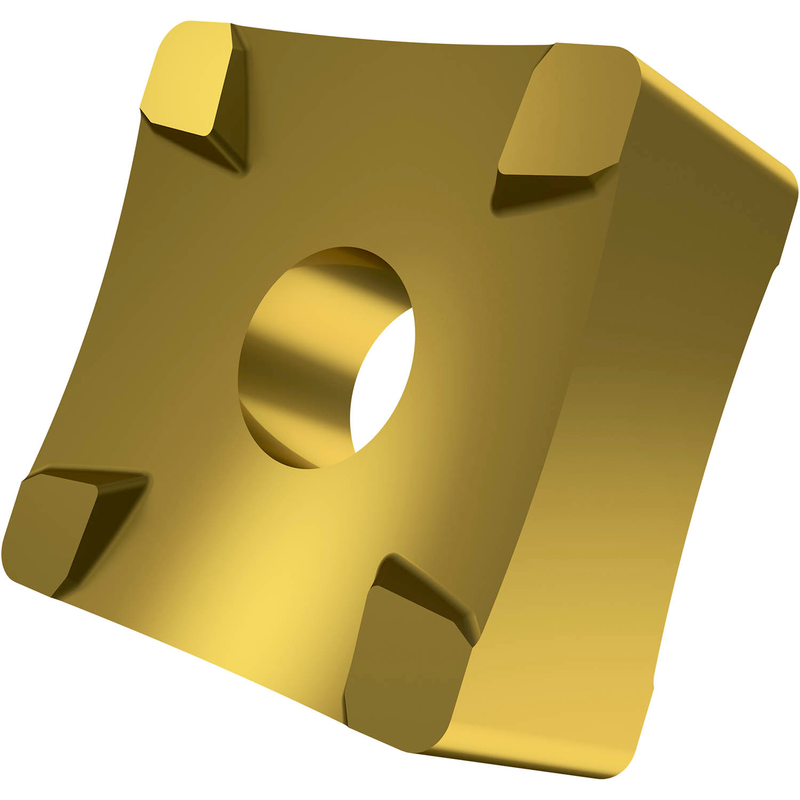

SNMX 25-R140:6640

SNMX 25-R140:6640

UGC DOR6753184
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$92.14 CAD - $92.14 CAD
$92.14 CAD
$92.14 CAD - $92.14 CAD
$92.14 CAD

Vendu en lots de : 10

Plaquette de dressage double face, carrée avec une arête de coupe principale de 25,4 mm, une épaisseur de 12,2 mm et un rayon de travail de 140 mm pour des diamètres de tube de 161 à 230 mm, en carbure WC-Co revêtu MT-CVD 6640 dans les plages de nuances ISO P20-P40 et M20-M35 pour l'ébavurage extérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 25-R140:6640
Grade6640
Chipbreaker (CBMD)Avec brise-copeaux -aucune désignation
Product Number6753184
Product FamilySNMX 25-R
Insert Geometry
Insert DesignSNMX 25-R
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.48"
Insert Thickness — mm (S)12.2 mm
Tool Information
Reference Numbers
EDP Number6753184
EAN3603602885500
