LDGN 130560-R25:6640
LDGN 130560-R25:6640

LDGN 130560-R25:6640

UGC DOR6753291
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.57 CAD - $88.57 CAD
$88.57 CAD
$88.57 CAD - $88.57 CAD
$88.57 CAD

Vendu en lots de : 2

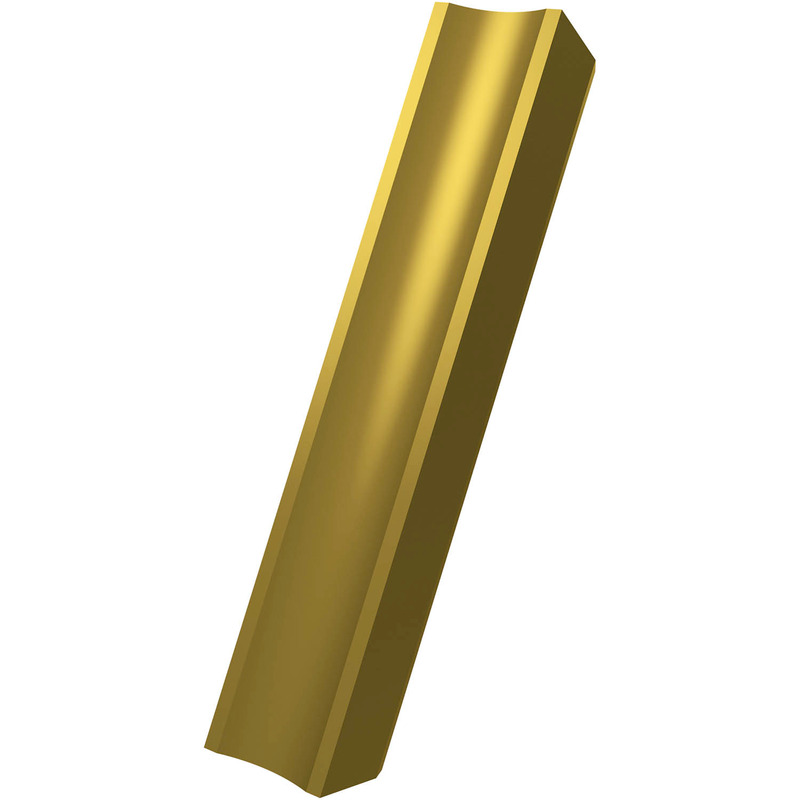

Lame de refendage à affûtage simple face, rectangle de 60mm de long avec une longueur d'arête de coupe principale de 13,05mm, épaisseur de 5mm et un rayon de travail de 25mm pour des diamètres de tubes de 29 à 36mm, carbure WC-Co revêtu MT-CVD 6640 dans les plages de grades ISO P20-P40 et M20-M35 pour l'ébavurage extérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LDGN 130560-R25:6640
Grade6640
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6753291
Product FamilyLDGN
Insert Geometry
Insert DesignLDGN
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.0 mm
Tool Information
Reference Numbers
EDP Number6753291
EAN3603602886576
File Type Download

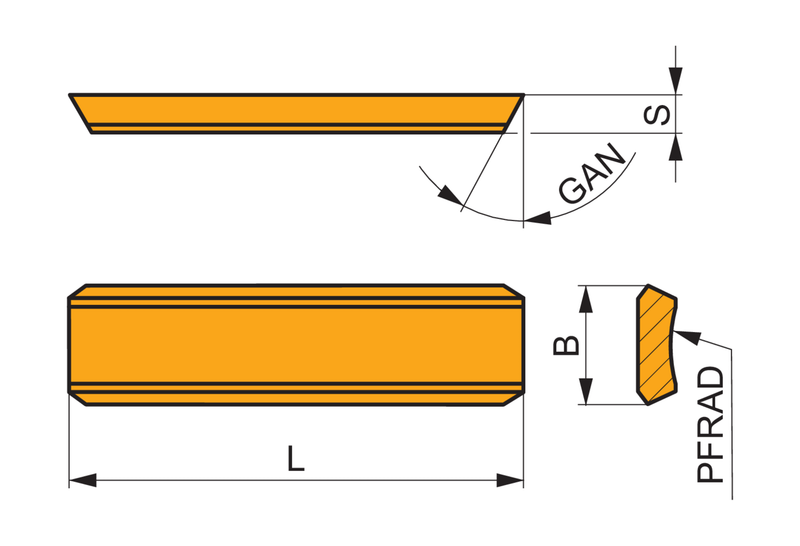

LDGN 130560-R25:6640 — Line Drawing PDF Download
