LDGN 130560-R40:6640
LDGN 130560-R40:6640

LDGN 130560-R40:6640

UGC DOR6753294
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.57 CAD - $88.57 CAD
$88.57 CAD
$88.57 CAD - $88.57 CAD
$88.57 CAD

Vendu en lots de : 2

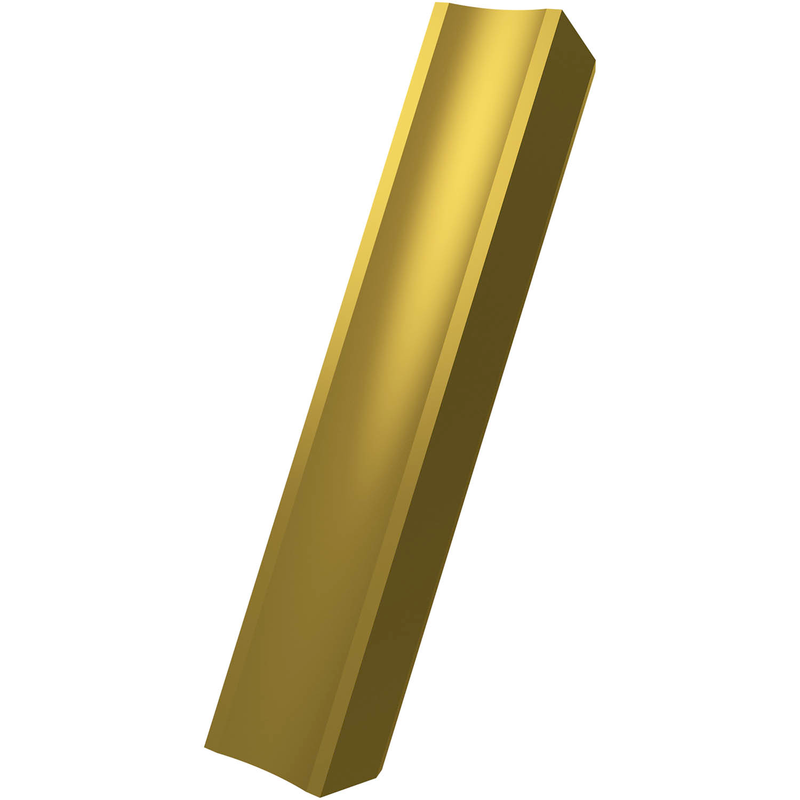

Lame de chanfreinage réaffûtable simple face, rectangle de 60 mm de long avec une arête de coupe principale de 13,05 mm, 5 mm d'épaisseur et un rayon de travail de 40 mm pour des diamètres de tubes de 46 à 58 mm, carbure WC-Co revêtu 6640 MT-CVD dans les plages de nuances ISO P20-P40 et M20-M35 pour l'ébavurage extérieur de tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LDGN 130560-R40:6640
Grade6640
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6753294
Product FamilyLDGN
Insert Geometry
Insert DesignLDGN
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.0 mm
Tool Information
Reference Numbers
EDP Number6753294
EAN3603602886606
File Type Download

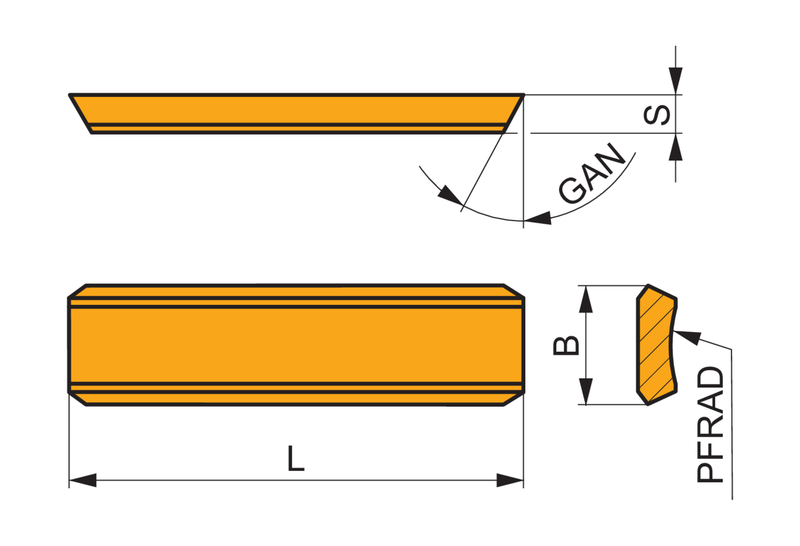

LDGN 130560-R40:6640 — Line Drawing PDF Download
