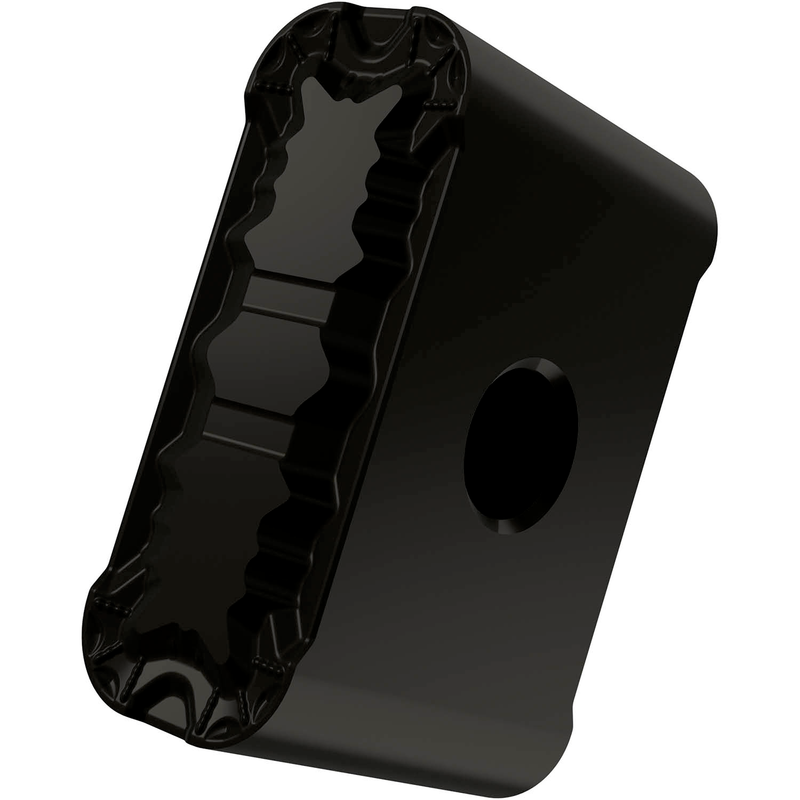

LNMX 301940SN-RF:T9315
LNMX 301940SN-RF:T9315

LNMX 301940SN-RF:T9315

UGC DOR6753309
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$78.57 CAD - $78.57 CAD
$78.57 CAD
$78.57 CAD - $78.57 CAD
$78.57 CAD

Vendu en lots de : 5

Plaquette négative de conception spéciale, rectangulaire avec une arête principale de 30 mm, rayon de bec de 4 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RF avec arêtes de coupe arrondies avec facette, en nuance T9315, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P05-P25, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNMX 301940SN-RF:T9315
GradeT9315
Chipbreaker (CBMD)RF
Product Number6753309
Product FamilyLN.X 19, LN.X 30
Insert Geometry
Insert DesignLN.X 19, LN.X 30
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.75"
Insert Thickness — mm (S)19.05 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number6753309
EAN3603602886750
File Type Download
LNMX 301940SN-RF:T9315 — Line Drawing PDF Download
