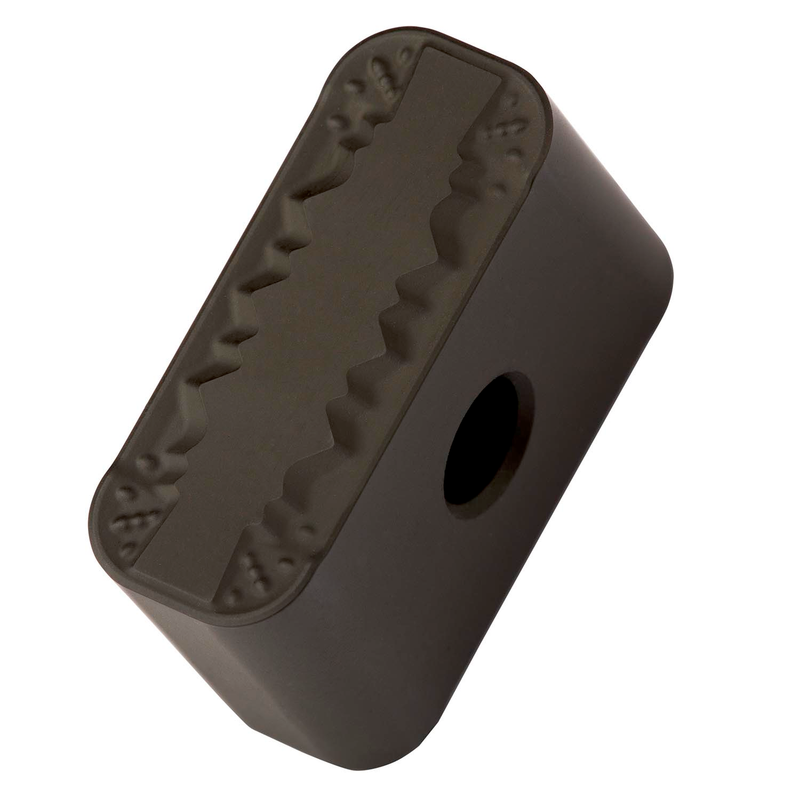

LNMX 301940SN-RM:T9325
LNMX 301940SN-RM:T9325

LNMX 301940SN-RM:T9325

UGC DOR6753313
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$78.57 CAD - $78.57 CAD
$78.57 CAD
$78.57 CAD - $78.57 CAD
$78.57 CAD

Vendu en lots de : 5

Plaquette négative spéciale, rectangulaire avec une longueur d'arête principale de 30mm, rayon de bec de 4mm, précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux RM avec arêtes de coupe arrondies avec facette, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P15-P35, pour l'usinage moyen à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNMX 301940SN-RM:T9325
GradeT9325
Chipbreaker (CBMD)RM
Product Number6753313
Product FamilyLN.X 19, LN.X 30
Insert Geometry
Insert DesignLN.X 19, LN.X 30
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.75"
Insert Thickness — mm (S)19.05 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number6753313
EAN3603602886798
File Type Download
LNMX 301940SN-RM:T9325 — Line Drawing PDF Download
