LNMX 301940SN-RR:T9325
LNMX 301940SN-RR:T9325

LNMX 301940SN-RR:T9325

UGC DOR6753316
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$78.57 CAD - $78.57 CAD
$78.57 CAD
$78.57 CAD - $78.57 CAD
$78.57 CAD

Vendu en lots de : 5

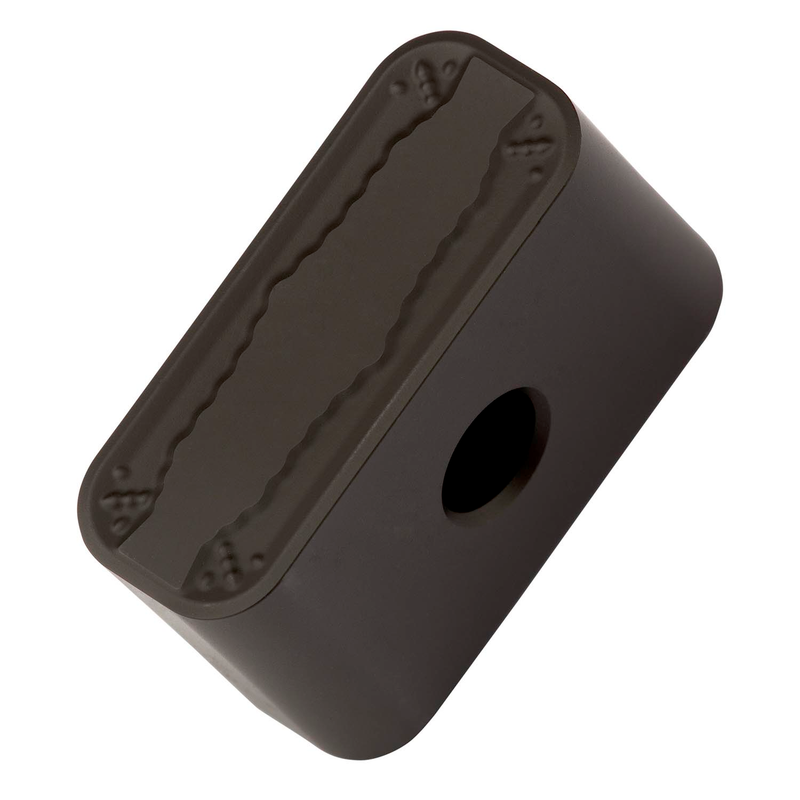

Plaquette de tournage négative de conception spéciale, rectangulaire avec une arête principale de 30mm de long, un rayon de bec de 4mm, une précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RR avec arêtes de coupe arrondies avec facette, en nuance T9325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO P15-P35, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNMX 301940SN-RR:T9325
GradeT9325
Chipbreaker (CBMD)CR
Product Number6753316
Product FamilyLN.X 19, LN.X 30
Insert Geometry
Insert DesignLN.X 19, LN.X 30
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.75"
Insert Thickness — mm (S)19.05 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)0.472"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number6753316
EAN3603602886828
File Type Download
LNMX 301940SN-RR:T9325 — Line Drawing PDF Download
