PSR0-R5.5:5040
PSR0-R5.5:5040

PSR0-R5.5:5040

UGC DOR6753342
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.33 CAD - $35.33 CAD
$35.33 CAD
$35.33 CAD - $35.33 CAD
$35.33 CAD

Vendu en lots de : 10

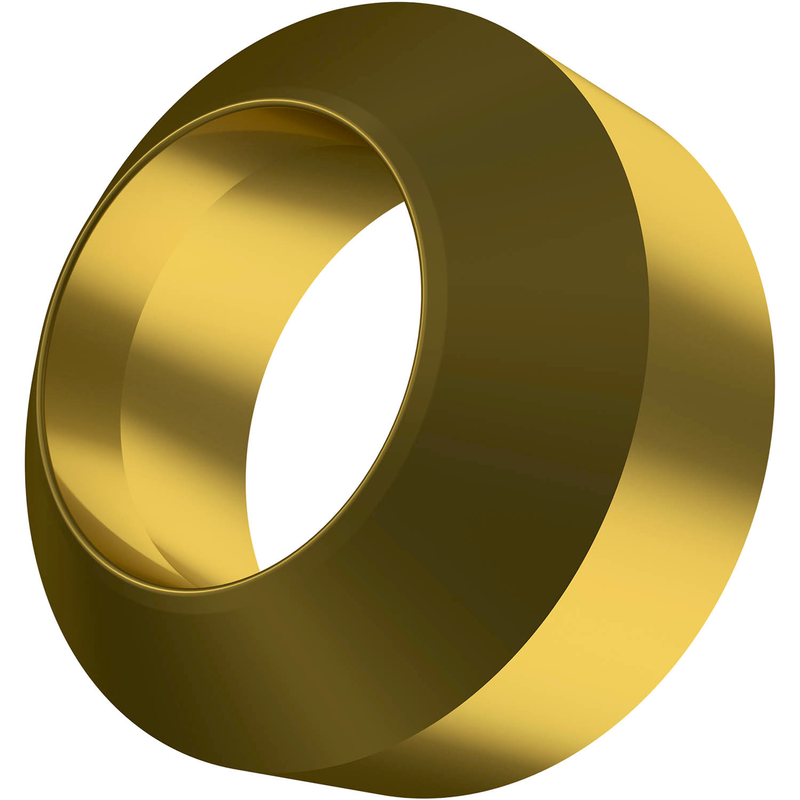

Anneau d'ébarbage d'un diamètre extérieur de 8mm, d'un diamètre intérieur de 5mm, de 4mm d'épaisseur et d'un rayon de travail de 5,7mm pour des diamètres de tube de 16 à 20mm, en carbure WC-(Ti, Ta, Nb)C-Co revêtu MT-CVD 5040 dans les plages de grades ISO P25-P45 et M25-M35 pour l'ébavurage intérieur de tubes et de tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR0-R5.5:5040
Grade5040
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6753342
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)0.315"
Inscribed Circle Dia. — mm (IC)8.0 mm
Insert Thickness — in (S)0.157"
Insert Thickness — mm (S)4.0 mm
Tool Information
Reference Numbers
EDP Number6753342
EAN3603602887085
File Type Download

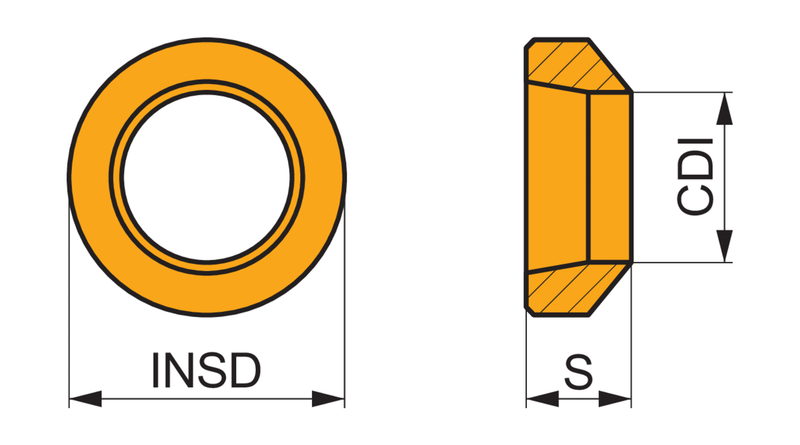

PSR0-R5.5:5040 — Line Drawing PDF Download
