PSR5-R28:5040
PSR5-R28:5040

PSR5-R28:5040

UGC DOR6753349
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$115.00 CAD - $115.00 CAD
$115.00 CAD
$115.00 CAD - $115.00 CAD
$115.00 CAD

Vendu en lots de : 5

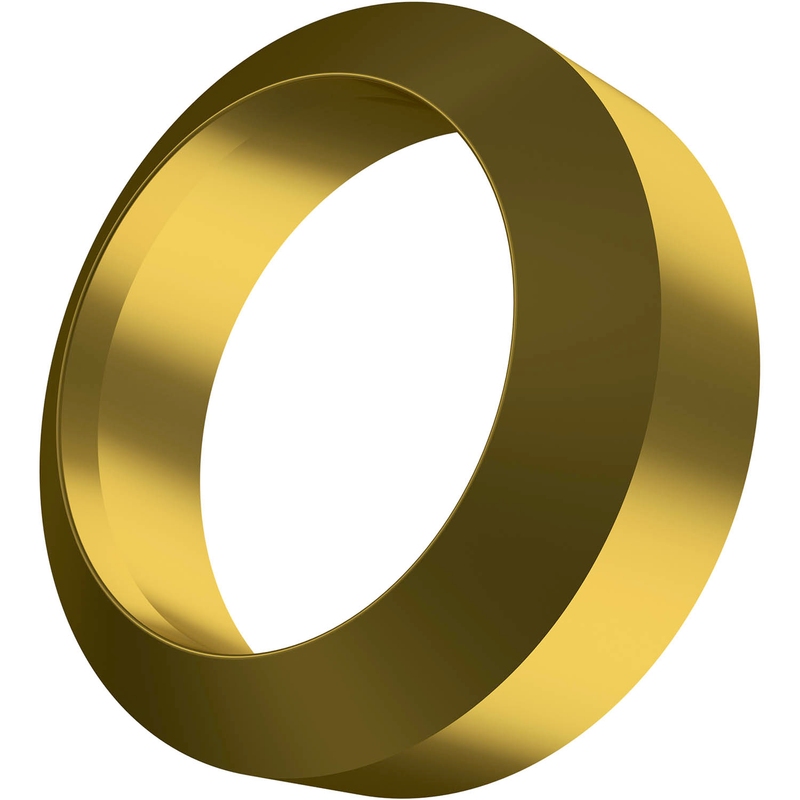

Bague d'écroutage d'un diamètre extérieur de 35mm, d'un diamètre intérieur de 25mm, d'une épaisseur de 12mm et d'un rayon de travail de 28,5mm pour des diamètres de tube de 85 à 100mm, en carbure WC-(Ti, Ta, Nb)C-Co avec revêtement 5040 MT-CVD, dans les plages de grade ISO P25-P45 et M25-M35 pour l'ébavurage intérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR5-R28:5040
Grade5040
Chipbreaker (CBMD)Sans brise-copeaux
Product Number6753349
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)1.378"
Inscribed Circle Dia. — mm (IC)35.0 mm
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Tool Information
Reference Numbers
EDP Number6753349
EAN3603602887153
File Type Download
PSR5-R28:5040 — Line Drawing PDF Download
