PSR5-R25:5040
PSR5-R25:5040

PSR5-R25:5040

UGC DOR6753351
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$96.43 CAD - $96.43 CAD
$96.43 CAD
$96.43 CAD - $96.43 CAD
$96.43 CAD

Vendu en lots de : 5

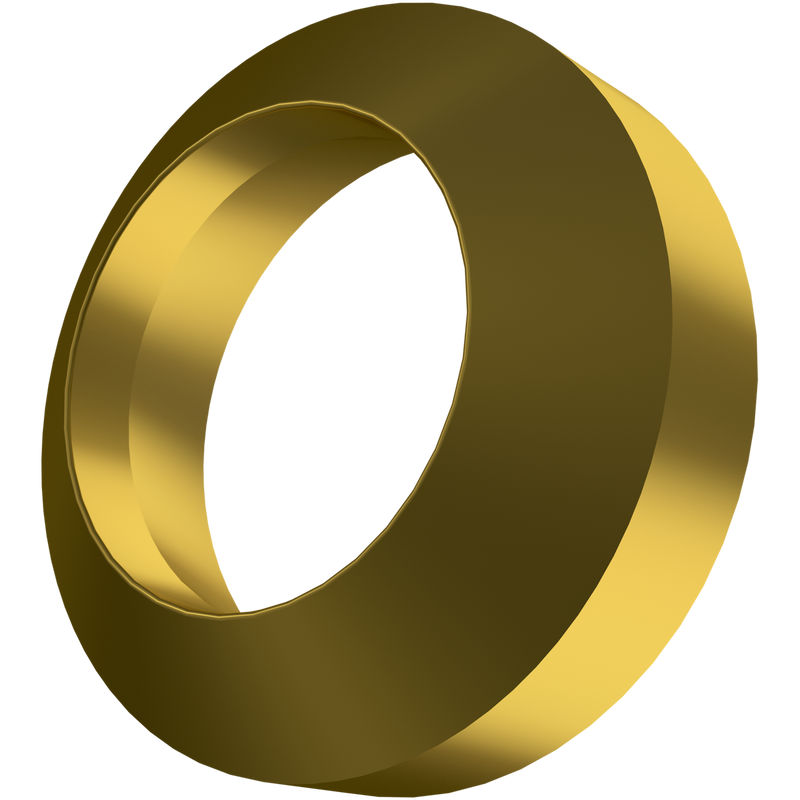

Bague d'écroutage d'un diamètre extérieur de 35 mm, d'un diamètre intérieur de 22 mm, d'une épaisseur de 12 mm et d'un rayon de travail de 25,1 mm pour des diamètres de tube de 70 à 85 mm, en carbure WC-(Ti, Ta, Nb)C-Co revêtu MT-CVD 5040, de classes ISO P25-P45 et M25-M35, pour l'ébavurage intérieur de tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR5-R25:5040
Grade5040
Chipbreaker (CBMD)Sans brise-copeau
Product Number6753351
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)1.378"
Inscribed Circle Dia. — mm (IC)35.0 mm
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Tool Information
Reference Numbers
EDP Number6753351
EAN3603602887177
File Type Download
PSR5-R25:5040 — Line Drawing PDF Download
