PSR5-R25:S45
PSR5-R25:S45

PSR5-R25:S45

UGC DOR6753352
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$80.00 CAD - $80.00 CAD
$80.00 CAD
$80.00 CAD - $80.00 CAD
$80.00 CAD

Vendu en lots de : 5

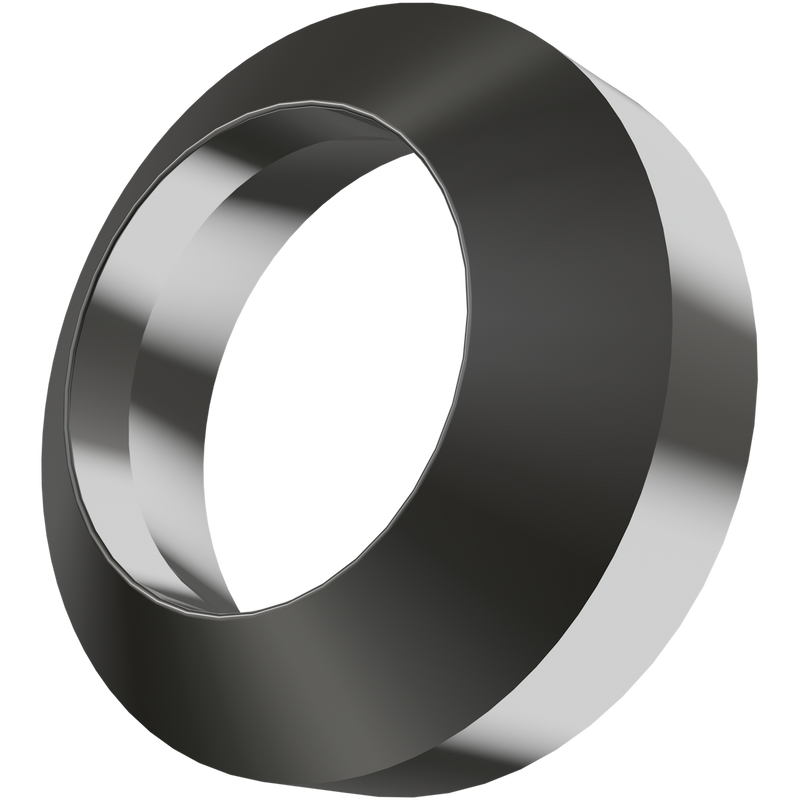

Anneau d'ébarbage d'un diamètre extérieur de 35 mm, d'un diamètre intérieur de 22 mm, de 12 mm d'épaisseur et d'un rayon de travail de 25,1 mm pour des diamètres de tubes de 70 à 85 mm, en carbure WC-(Ti, Ta, Nb)C-Co non revêtu S45 dans les plages de nuances ISO P30-P50 et M30-M40 pour l'ébavurage intérieur des tubes et tuyaux en acier et en acier inoxydable

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)PSR5-R25:S45
GradeS45
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number6753352
Product FamilyRSP
Insert Geometry
Insert DesignRSP
Insert Shape Code (SC)P - pentagonal
Inscribed Circle Dia. — in (IC)1.378"
Inscribed Circle Dia. — mm (IC)35.0 mm
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Tool Information
Reference Numbers
EDP Number6753352
EAN3603602887184
File Type Download
PSR5-R25:S45 — Line Drawing PDF Download
