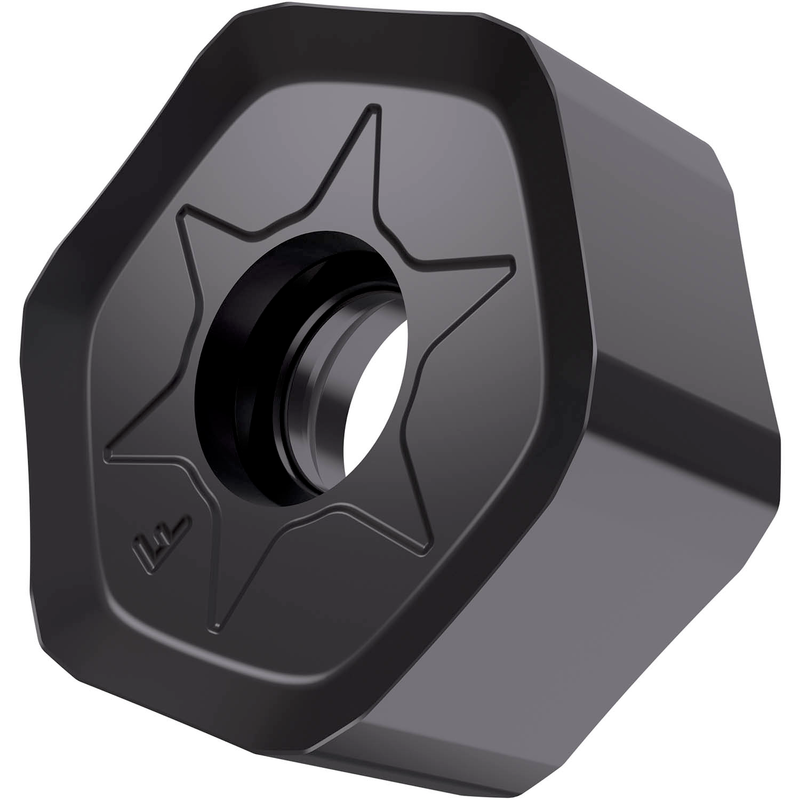

HNGX 0906ANSN-F:8215
HNGX 0906ANSN-F:8215

HNGX 0906ANSN-F:8215

UGC DOR6753399
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.07 CAD - $37.07 CAD
$37.07 CAD
$37.07 CAD - $37.07 CAD
$37.07 CAD

Vendu en lots de : 10

Plaquette de fraisage double-face HNGX 0906, hexagonale pour une profondeur de coupe maximale de .1969", avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-G et une géométrie F avec arêtes de coupe et facette arrondies, carbure WC-Co à grains fins revêtu PVD 8215 dans la gamme de nuances ISO P10-P20 pour l'usinage de l'acier avec les fraises à surfacer SHN09C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0906ANSN-F:8215
Grade8215
Chipbreaker (CBMD)F
Product Number6753399
Product FamilyHNGX 09
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.65"
Inscribed Circle Dia. — mm (IC)16.5 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number6753399
EAN3603602887658
File Type Download
HNGX 0906ANSN-F:8215 — Line Drawing PDF Download
