RPET 1204MOSN:8215
RPET 1204MOSN:8215

RPET 1204MOSN:8215

UGC DOR6753403
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.86 CAD - $18.86 CAD
$18.86 CAD
$18.86 CAD - $18.86 CAD
$18.86 CAD

Vendu en lots de : 10

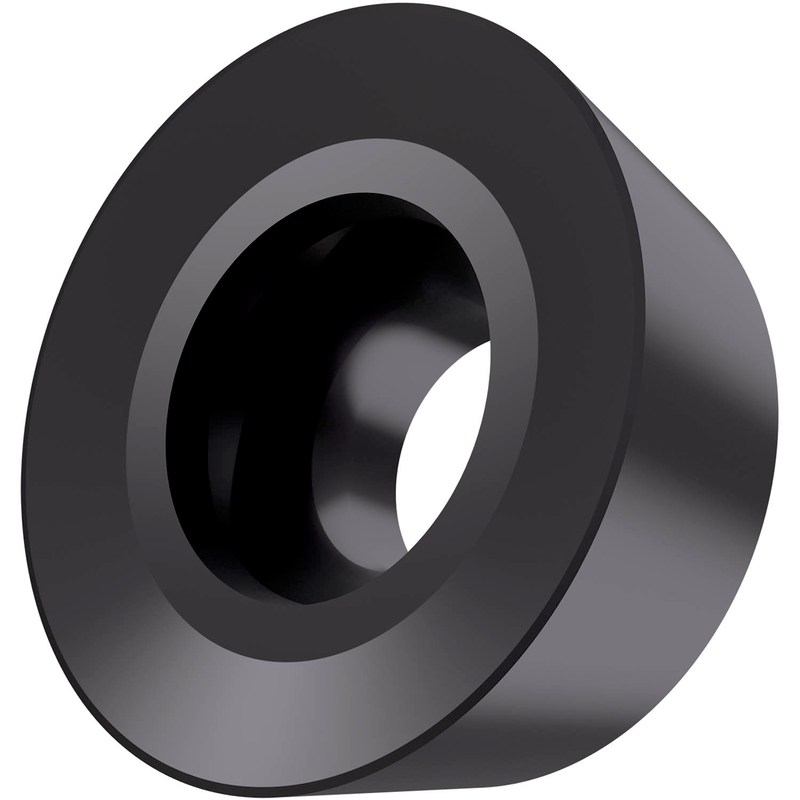

Plaquette de fraisage simple face RPET 1204 avec brise-copeaux, ronde pour une profondeur de coupe maximale de 3 mm, avec rayon de coin ", une précision de positionnement selon la classe de tolérance ISO-E avec arêtes de coupe arrondies et facette, carbure WC-Co à grains fins revêtu PVD 8215

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RPET 1204MOSN:8215
Grade8215
Chipbreaker (CBMD)Avec brise-copeaux -aucune désignation
Product Number6753403
Product FamilyRPET 12
Insert Geometry
Insert DesignRPET
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number6753403
EAN3603602887696
File Type Download

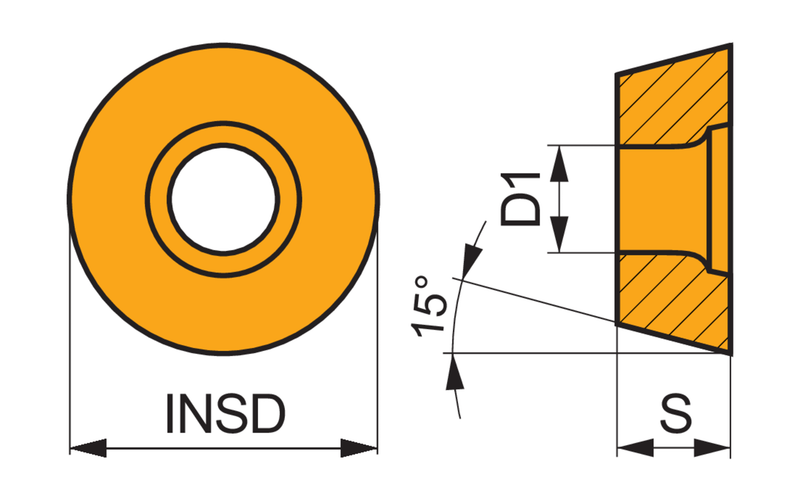

RPET 1204MOSN:8215 — Line Drawing PDF Download
