SDMT 120508SR-M:8215
SDMT 120508SR-M:8215

SDMT 120508SR-M:8215

UGC DOR6753405
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.70 CAD - $29.70 CAD
$29.70 CAD
$29.70 CAD - $29.70 CAD
$29.70 CAD

Vendu en lots de : 10

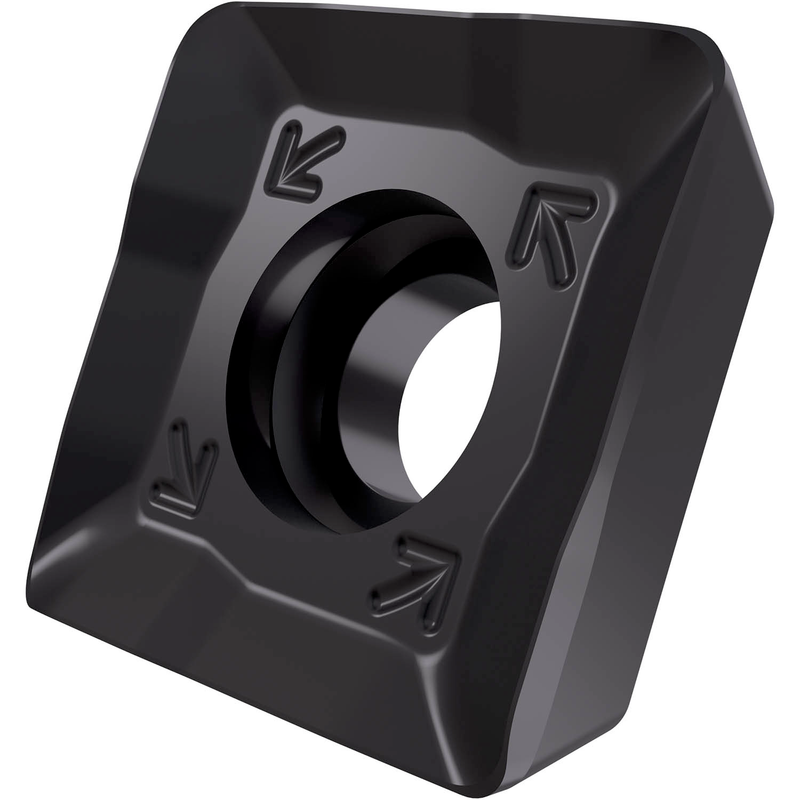

Plaquette de fraisage simple face SDMT 1205 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 10 mm, avec un rayon de pointe de 0,8 mm, une précision de positionnement conforme à la classe de tolérance ISO M et une géométrie M avec arêtes de coupe arrondies et facette, carbure WC-Co à grain fin revêtu PVD 8215 pour l'usinage avec les fraises à épaulement SSD12

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDMT 120508SR-M:8215
Grade8215
Chipbreaker (CBMD)M
Product Number6753405
Product FamilySDMT 12

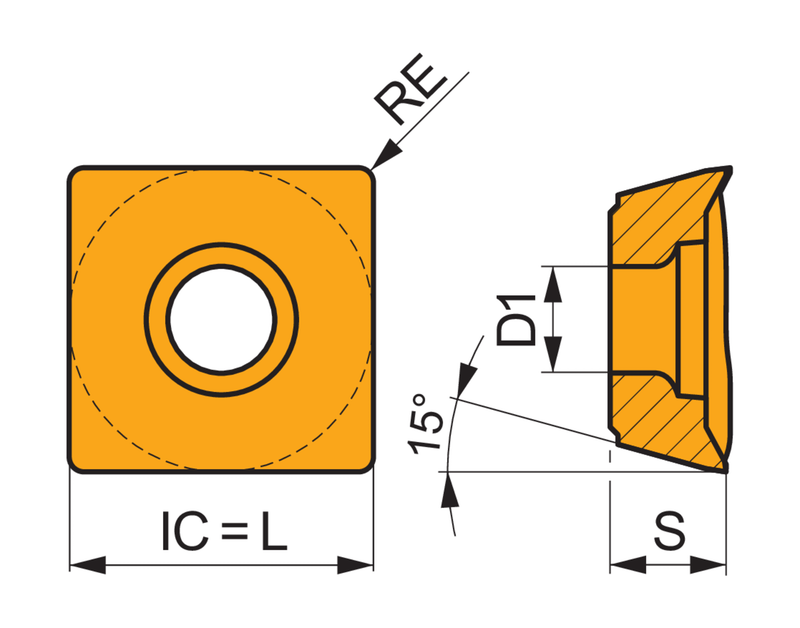

Insert Geometry
Insert DesignSDMT
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.0 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number6753405
EAN3603602887719
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
SDMT 120508SR-M:8215 — Line Drawing PDF Download
